PVC Cable Tray Epoxy Coated Steel Cantilever Arm | 600mm Width | 2050 N Safe Working Load | Halogen Free | @Each of 1 | by Cablofil

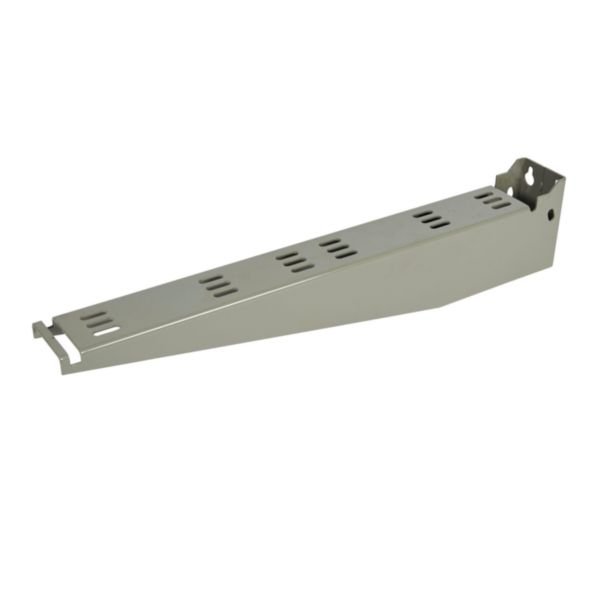

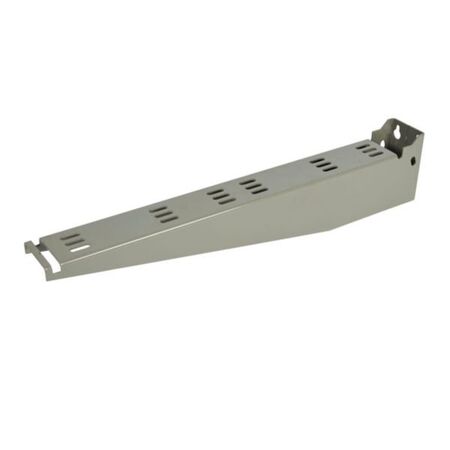

The PVC Cable Tray Epoxy Coated Steel Cantilever Arm is designed for robust cable management in industrial and commercial settings. With a 600mm width and a safe working load of 2050 N, this halogen-free arm ensures secure support for cable trays. Ideal for mounting on walls or vertical surfaces, it offers enhanced corrosion resistance and operates effectively in temperatures ranging from -20°C to 120°C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PVC Cable Tray Epoxy Coated Steel Cantilever Arm | 600mm Width | 2050 N Safe Working Load | Halogen Free | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: 637981
Alternatively Known As: Cable Tray Wall Bracket, Cantilever Cable Tray Support Arm, Epoxy Coated Cable Tray Bracket
Technical Specifications
- Length: 650 mm
- Width: 80 mm
- Height: 130 mm
- Suitable for cable support system width: 600 mm
- Material: Steel with epoxy coating
- Safe working load: 2050 N (IEC 61537)
- Operating temperature: -20°C to 120°C
- Colour: Grey (RAL 7030)
- Halogen free: Yes
- Angle: 90°
- Dimensions (H x L x W): 130mm x 650mm x 80mm
- Weight: 1.5 kg
Key Features
- Epoxy coated steel construction for enhanced corrosion resistance
- Cantilever arm design for secure cable tray support
- Halogen free material for safety in electrical environments
- Safe working load of 2050 N according to IEC 61537
- Operating temperature range from -20°C to 120°C
Professional Installation Requirements
- Installation should be performed by qualified electrical or mechanical professionals to ensure secure mounting and compliance with local electrical and building codes.
Applications
- Supports and fixings for PVC cable tray systems in industrial and commercial electrical installations
- Used for mounting cable trays on walls or other vertical surfaces
- Suitable for cable management in data centers, manufacturing plants, and infrastructure projects
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Epoxy coating extends product lifespan reducing replacement frequency and waste
- Halogen free materials improve safety and reduce toxic emissions in case of fire
Warranty Information
Standard manufacturer warranty applies; typically 1-3 years depending on purchase terms.
Available Now
The Legrand PVC Cable Tray Epoxy Coated Steel Cantilever Arm 600mm is available for immediate purchase, ideal for industrial and commercial cable management applications.
