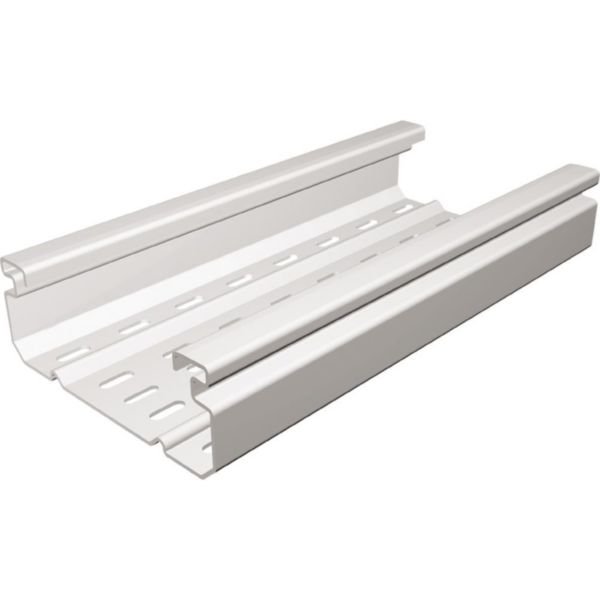

PVC Cable Tray Perforated 100mm x 75mm | Durable PVC Material | Untreated Grey Surface | @Each of 1 | by Cablofil
The PVC Cable Tray Perforated 100mm x 75mm is designed for efficient cable management in commercial and industrial settings. Featuring a perforated bottom for ventilation and support, this lightweight and corrosion-resistant tray is made from durable PVC, ensuring long-lasting performance. Ideal for routing and supporting electrical cables in dry environments, it complies with AS/NZS 1170 standards for structural design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PVC Cable Tray Perforated 100mm x 75mm | Durable PVC Material | Untreated Grey Surface | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: 637811
Alternatively Known As: PVC Cable Tray, Perforated Cable Tray, Cable Management Tray, Electrical Cable Tray
Technical Specifications
- Height: 75 mm
- Width: 100 mm
- Material thickness: 2.3 mm
- Length: 3000 mm
- Usable cross section: 6440 mm²
- Bottom perforation: Yes
- Side perforation: No
- Material: Polyvinyl chloride (PVC)
- Operating temperature: -5°C to 60°C
- Storage temperature: -20°C to 60°C
- Colour: Grey (RAL 7030)
- Halogen free: No
- Surface protection: Untreated
- Dimensions (H x L x W): 75mm x 3000mm x 100mm
- Weight: 3.5 kg
Key Features
- Perforated bottom for ventilation and cable support
- Made from durable polyvinyl chloride (PVC)
- Untreated grey surface (RAL 7030)
- Operating temperature range from -5°C to 60°C
- Lightweight and corrosion-resistant material
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure secure mounting and compliance with electrical safety standards.
Applications
- Cable management in commercial and industrial electrical installations
- Routing and supporting electrical cables in buildings
- Suitable for indoor use in dry environments
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- PVC material is recyclable and resistant to corrosion, reducing replacement frequency
- Lightweight design reduces transportation energy and emissions
Warranty Information
Standard manufacturer warranty applies; please refer to Legrand for specific warranty details.
Available Now
The Legrand PVC Cable Tray Perforated 100mm x 75mm x 3m Length is available now for immediate purchase. Ideal for commercial and industrial cable management applications.
