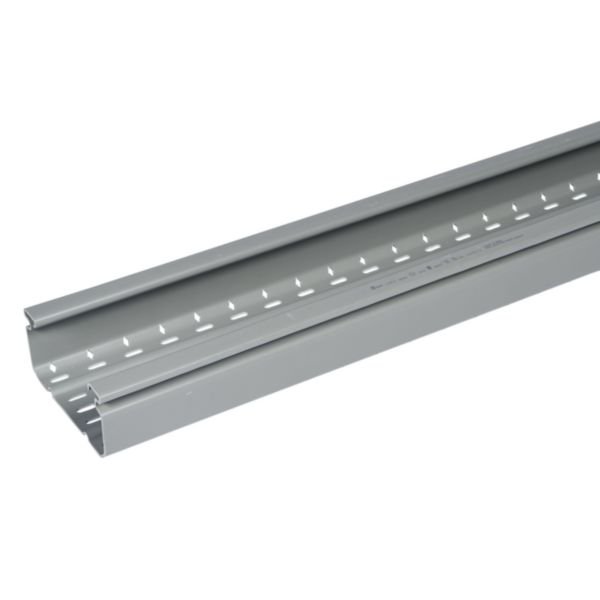

PVC Cable Tray Perforated 200mm x 100mm | Durable PVC Material | Ventilated Design | Grey Color | @Each of 1 | by Cablofil
The PVC Cable Tray Perforated 200mm x 100mm is designed for efficient cable management in commercial and industrial settings. Made from durable polyvinyl chloride (PVC), it features a perforated bottom for ventilation and cable support, ensuring optimal performance in dry environments. Ideal for routing and supporting electrical cables, this tray is perfect for professional installations that comply with electrical codes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Height: 100 mm
- Width: 200 mm
- Length: 3000 mm
- Material thickness: 2.8 mm
- Usable cross section: 16979 mm²
- Material: Polyvinyl chloride (PVC)
- Surface protection: Untreated
- Colour: Grey (RAL 7030)
- Operating temperature: -5°C to 60°C
- Storage temperature: -20°C to 60°C
- Halogen free: No
- Bottom perforation: Yes
- Side perforation: No
- NATO mounting holes: No
- Suitable for circuit integrity: No
- Dimensions (H x L x W): 100mm x 3000mm x 200mm
- Weight: 4.5 kg
Key Features
- Perforated bottom for ventilation and cable support
- Made from durable polyvinyl chloride (PVC)
- Corrosion-resistant and untreated surface
- Grey color (RAL 7030) for standard industrial use
- Operating temperature range from -5°C to 60°C
Professional Installation Requirements
- Professional installation by qualified electrical contractors is recommended to ensure compliance with electrical and building codes.
Applications
- Cable management in commercial and industrial electrical installations
- Routing and supporting electrical cables in buildings
- Suitable for indoor use in dry environments
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- PVC material is recyclable and supports sustainable cable management solutions
- Lightweight design reduces transportation emissions
Warranty Information
Standard manufacturer warranty applies; please refer to Legrand for specific warranty details.
Available Now
The Legrand PVC Cable Tray Perforated 200mm x 100mm x 3m Length is available for immediate purchase, ideal for commercial and industrial cable management applications.
