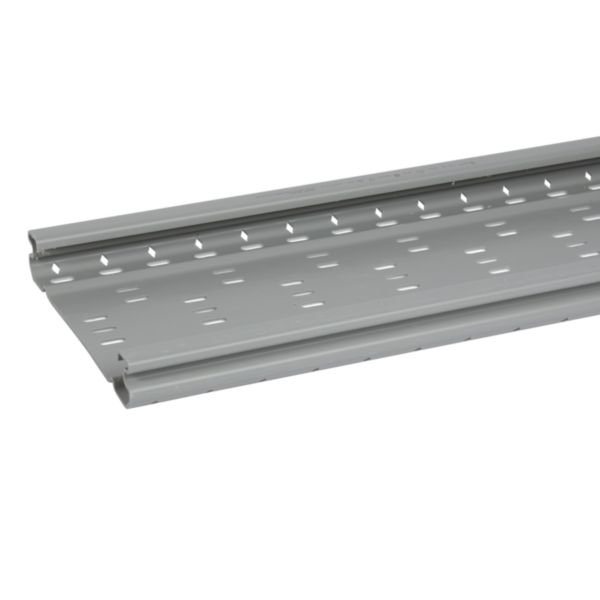

PVC Cable Tray Perforated 300mm x 50mm | Durable PVC Material | Untreated Grey Surface | @Each of 1 | by Cablofil
The PVC Cable Tray Perforated 300mm x 50mm is designed for efficient cable management in commercial and industrial settings. Made from durable polyvinyl chloride (PVC), it features a perforated bottom for ventilation and cable support, ensuring optimal performance in electrical installations. Ideal for routing and supporting electrical cables indoors, this tray conforms to EN 61537 standards for safety and reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PVC Cable Tray Perforated 300mm x 50mm | Durable PVC Material | Untreated Grey Surface | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: 637741
Alternatively Known As: PVC Cable Tray, Perforated Cable Tray, Cable Management Tray, Electrical Cable Tray
Technical Specifications
- Height: 50 mm
- Width: 300 mm
- Material thickness: 3.5 mm
- Length: 3000 mm
- Usable cross section: 12825 mm²
- Bottom perforation: Yes
- Material: Polyvinyl chloride (PVC)
- Operating temperature: -5°C to 60°C
- Storage temperature: -20°C to 60°C
- Colour: Grey (RAL 7030)
- Halogen free: No
- Surface protection: Untreated
- Dimensions (H x L x W): 50mm x 3000mm x 300mm
- Weight: 4.5 kg
Key Features
- Perforated bottom for ventilation and cable support
- Made from durable polyvinyl chloride (PVC)
- Untreated grey surface (RAL 7030)
- Operating temperature range from -5°C to 60°C
- Conforms to EN 61537 standard for cable tray systems
Professional Installation Requirements
- Professional installation by a qualified electrician or cable management specialist is recommended to ensure compliance with electrical standards and safety.
Applications
- Cable management in commercial and industrial electrical installations
- Routing and supporting electrical cables in buildings
- Suitable for indoor use in electrical wiring systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- PVC material is recyclable and supports sustainable cable management solutions
- Perforated design allows for better airflow reducing heat buildup and energy loss
Warranty Information
Standard manufacturer warranty applies; please refer to Legrand for specific warranty details.
Available Now
The Legrand PVC Cable Tray Perforated 300mm x 50mm x 3m Length is available for immediate purchase, ideal for commercial and industrial electrical cable management applications.
