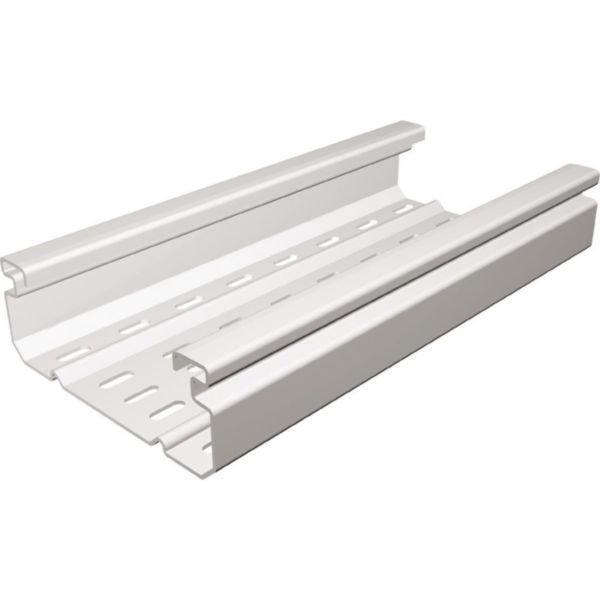

PVC Cable Tray Perforated 300mm | Durable PVC Material | Untreated Grey Finish | @Each of 1 | by Cablofil
The PVC Cable Tray Perforated 300mm is designed for efficient cable management in commercial and industrial settings. Made from durable polyvinyl chloride (PVC), it features a perforated bottom for ventilation and cable support, ensuring optimal performance in electrical installations. Ideal for routing and supporting cables indoors, this tray combines strength with a sleek untreated grey finish.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Height: 75 mm
- Width: 300 mm
- Length: 3000 mm
- Material thickness: 3.8 mm
- Usable cross section: 19601 mm²
- Material: Polyvinyl chloride (PVC)
- Surface protection: Untreated
- Colour: Grey (RAL 7030)
- Operating temperature: -5°C to 60°C
- Storage temperature: -20°C to 60°C
- Bottom perforation: Yes
- Side perforation: No
- Halogen free: No
- Suitable for circuit integrity: No
- Dimensions (H x L x W): 75mm x 3000mm x 300mm
- Weight: 4.5 kg
Key Features
- Perforated bottom for ventilation and cable support
- Made from durable polyvinyl chloride (PVC)
- Untreated grey surface (RAL 7030)
- Operating temperature range from -5°C to 60°C
- Material thickness of 3.8 mm for strength and durability
- Usable cross section of 19601 mm²
Professional Installation Requirements
- Installation should be performed by qualified professionals to ensure compliance with electrical and building standards.
Applications
- Cable management in commercial and industrial electrical installations
- Routing and supporting electrical cables in buildings
- Suitable for indoor use in electrical wiring systems
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- PVC material is recyclable and supports sustainable cable management solutions
- Perforated design allows for better airflow reducing heat buildup and energy loss
Warranty Information
Standard manufacturer warranty applies; please refer to Legrand for specific warranty details.
Available Now
The Legrand PVC Cable Tray Perforated 300mm x 75mm x 3m Length is available for immediate purchase, ideal for commercial and industrial cable management applications.
