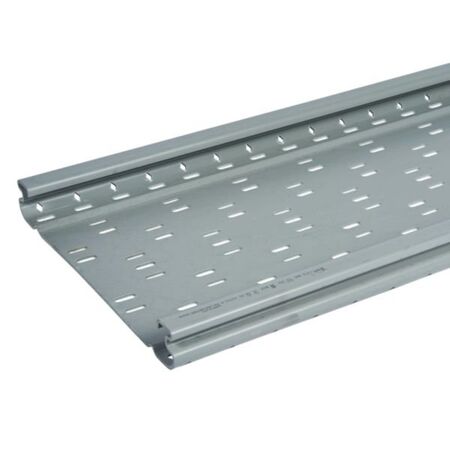

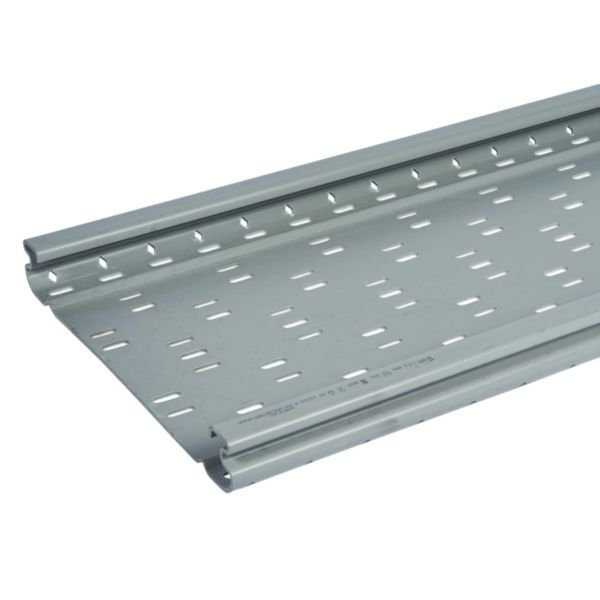

PVC Cable Tray Perforated 400mm | Durable PVC Material | Improved Ventilation | Grey Finish | @Each of 1 | by Cablofil
The PVC Cable Tray Perforated 400mm is designed for efficient cable management in commercial and industrial settings. Made from durable polyvinyl chloride (PVC), it features a perforated design that enhances ventilation and heat dissipation, ensuring optimal performance. Ideal for routing and supporting electrical cables, this tray complies with EN 61537 standards, making it a reliable choice for indoor electrical wiring systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PVC Cable Tray Perforated 400mm | Durable PVC Material | Improved Ventilation | Grey Finish | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: 637751
Alternatively Known As: PVC Cable Tray, Perforated Cable Tray, Electrical Cable Tray, Cable Management Tray
Technical Specifications
- Height: 50 mm
- Width: 400 mm
- Length: 3000 mm
- Material thickness: 4 mm
- Usable cross section: 17821 mm²
- Material: Polyvinyl chloride (PVC)
- Surface protection: Untreated
- Colour: Grey (RAL 7030)
- Operating temperature: -5°C to 60°C
- Storage temperature: -20°C to 60°C
- Halogen free: No
- Bottom perforation: Yes
- Side perforation: No
- Suitable for circuit integrity: No
- Dimensions (H x L x W): 50mm x 3000mm x 400mm
- Weight: 5.0 kg
Key Features
- Perforated design for improved ventilation and cable heat dissipation
- Made from durable polyvinyl chloride (PVC) material
- Untreated grey surface (RAL 7030)
- Operating temperature range from -5°C to 60°C
- Complies with EN 61537 standard for cable tray systems
Professional Installation Requirements
- Installation should be performed by qualified electrical professionals to ensure compliance with electrical safety standards and proper cable management.
Applications
- Cable management in commercial and industrial electrical installations
- Routing and supporting electrical cables in buildings
- Suitable for indoor use in electrical wiring systems
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- PVC material is recyclable and helps in reducing metal usage
- Perforated design allows better airflow reducing cable overheating and energy loss
Warranty Information
Standard manufacturer warranty applies; please refer to Legrand for specific warranty details.
Available Now
The Legrand PVC Cable Tray Perforated 400mm x 50mm x 3m Length is available for immediate purchase, ideal for commercial and industrial cable management applications.
