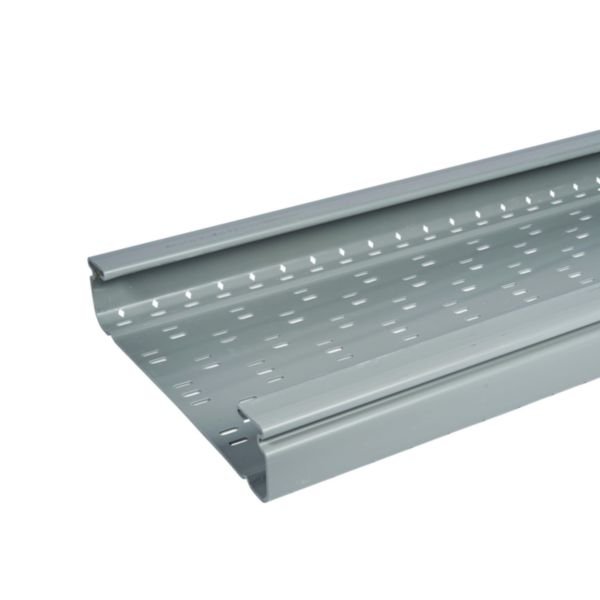

Legrand PVC Cable Tray Perforated | 500mm Width | Durable PVC Material | Untreated Grey Finish | @Each of 1 | by Cablofil
Legrand PVC Cable Tray Perforated is designed for efficient cable management in commercial and industrial settings. With a 500mm width and made from durable PVC, it features a perforated bottom for ventilation and cable support. Ideal for routing and supporting electrical cables indoors, this tray ensures compliance with EN 61537 standards, making it a reliable choice for electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Legrand PVC Cable Tray Perforated | 500mm Width | Durable PVC Material | Untreated Grey Finish | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: 637931
Alternatively Known As: PVC Cable Tray, Perforated Cable Tray, Electrical Cable Tray, Cable Management Tray
Technical Specifications
- Height: 100 mm
- Width: 500 mm
- Length: 3000 mm
- Material thickness: 4.5 mm
- Usable cross section: 45893 mm²
- Material: Polyvinyl chloride (PVC)
- Surface protection: Untreated
- Colour: Grey (RAL 7030)
- Operating temperature: -5°C to 60°C
- Storage temperature: -20°C to 60°C
- Halogen free: No
- Bottom perforation: Yes
- Side perforation: No
- NATO mounting holes: No
- Suitable for circuit integrity: No
- Dimensions (H x L x W): 100mm x 3000mm x 500mm
- Weight: 5.5 kg
Key Features
- Perforated bottom for ventilation and cable support
- Made from durable polyvinyl chloride (PVC)
- Untreated grey surface (RAL 7030)
- Operating temperature range from -5°C to 60°C
- Conforms to EN 61537 standard for cable tray systems
Professional Installation Requirements
- Installation should be performed by qualified electrical professionals to ensure compliance with local electrical and building codes.
Applications
- Cable management in commercial and industrial electrical installations
- Routing and supporting electrical cables in buildings
- Suitable for indoor use in electrical wiring systems
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- PVC material is recyclable and supports sustainable cable management solutions
- Perforated design allows for better airflow reducing heat buildup and energy loss
Warranty Information
Standard manufacturer warranty applies; please refer to Legrand for specific warranty details.
Available Now
The Legrand PVC Cable Tray Perforated 500mm x 100mm x 3m Length is available for immediate purchase, ideal for commercial and industrial cable management applications.
