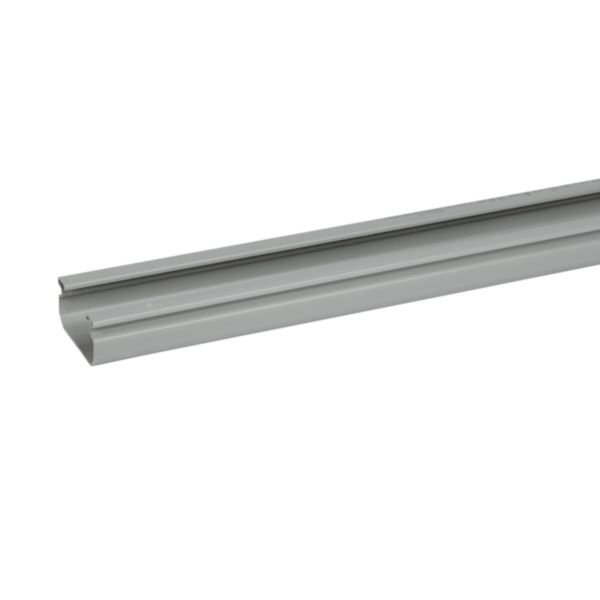

PVC Cable Tray Unperforated 100mm x 50mm | Durable PVC Material | Grey Color | @Each of 1 | by Cablofil
The PVC Cable Tray Unperforated 100mm x 50mm is designed for effective cable management in commercial and industrial settings. Made from durable polyvinyl chloride (PVC), it features an unperforated design for maximum cable protection and operates within a temperature range of -5°C to 60°C. Ideal for routing and protecting electrical cables indoors, this tray ensures compliance with electrical standards while providing a reliable solution for your cable management needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PVC Cable Tray Unperforated 100mm x 50mm | Durable PVC Material | Grey Color | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: 637710
Alternatively Known As: PVC Cable Tray, Cable Management Tray, Electrical Cable Tray, Unperforated Cable Tray
Technical Specifications
- Height: 50 mm
- Width: 100 mm
- Length: 3000 mm
- Material thickness: 2.3 mm
- Usable cross section: 4055 mm²
- Material: Polyvinyl chloride (PVC)
- Operating temperature: -5°C to 60°C
- Storage temperature: -20°C to 60°C
- Colour: Grey (RAL 7030)
- Surface protection: Untreated
- Halogen free: No
- Side perforation: No
- Bottom perforation: No
- With cover: No
- Suitable for circuit integrity: No
- Dimensions (H x L x W): 50mm x 3000mm x 100mm
- Weight: 3.5 kg
Key Features
- Unperforated design for maximum cable protection
- Made from durable polyvinyl chloride (PVC)
- Grey color (RAL 7030) for standard industrial use
- Operating temperature range from -5°C to 60°C
- Material thickness of 2.3 mm for strength and durability
- Untreated surface
Professional Installation Requirements
- Installation should be performed by qualified professionals to ensure compliance with electrical and building standards and to guarantee secure cable management.
Applications
- Cable management in commercial and industrial electrical installations
- Routing and protection of electrical cables in buildings
- Suitable for indoor use in dry environments
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- PVC material is recyclable and helps in reducing environmental impact
- Durable construction reduces the need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to Legrand for specific warranty details.
Available Now
The Legrand PVC Cable Tray Unperforated 100mm x 50mm x 3m Length is available for immediate purchase, ideal for commercial and industrial cable management applications.
