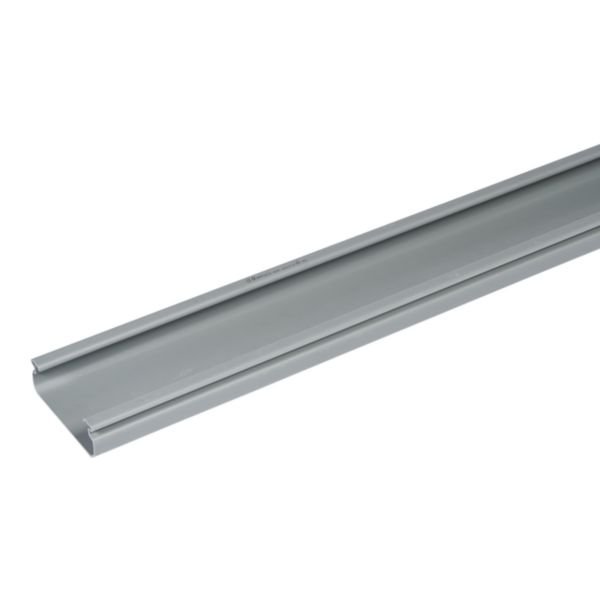

PVC Cable Tray Unperforated 150mm x 50mm | Durable PVC | Grey RAL 7030 | @Each of 1 | by Cablofil
The PVC Cable Tray Unperforated 150mm x 50mm is designed for effective cable management in commercial and industrial settings. Made from durable polyvinyl chloride (PVC), it offers maximum cable protection with its unperforated design. Ideal for routing electrical cables, this tray ensures compliance with safety standards while providing a long service life.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PVC Cable Tray Unperforated 150mm x 50mm | Durable PVC | Grey RAL 7030 | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: 637720
Alternatively Known As: PVC Cable Tray, Non-Perforated Cable Tray, Electrical Cable Tray, PVC Cable Management Tray
Technical Specifications
- Height: 50 mm
- Width: 150 mm
- Material thickness: 2.6 mm
- Length: 3000 mm
- Usable cross section: 6366 mm²
- Material: Polyvinyl chloride (PVC)
- Operating temperature: -5°C to 60°C
- Storage temperature: -20°C to 60°C
- Colour: Grey (RAL 7030)
- Surface protection: Untreated
- Halogen free: No
- Side perforation: No
- Bottom perforation: No
- NATO-mounting holes: No
- Suitable for circuit integrity: No
- Dimensions (H x L x W): 50mm x 3000mm x 150mm
- Weight: 3.5 kg
Key Features
- Unperforated design for maximum cable protection
- Made from durable polyvinyl chloride (PVC)
- Grey color with RAL 7030 standard
- Operating temperature range from -5°C to 60°C
- Untreated surface
- Conforms to EN 61537 standard
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with cable management systems to ensure compliance with electrical safety standards and optimal cable protection.
Applications
- Cable management in commercial and industrial electrical installations
- Suitable for routing and protecting electrical cables in buildings
- Ideal for use in environments requiring non-perforated cable trays
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- PVC material is durable and resistant to corrosion, reducing replacement frequency
- Non-metallic construction reduces risk of electrical conductivity and corrosion
- Long service life contributes to reduced material waste
Warranty Information
Standard manufacturer warranty applies; please refer to Legrand for specific warranty details.
Available Now
The Legrand PVC Cable Tray Unperforated 150mm x 50mm x 3m Length is available for immediate purchase, ideal for commercial and industrial cable management applications.
