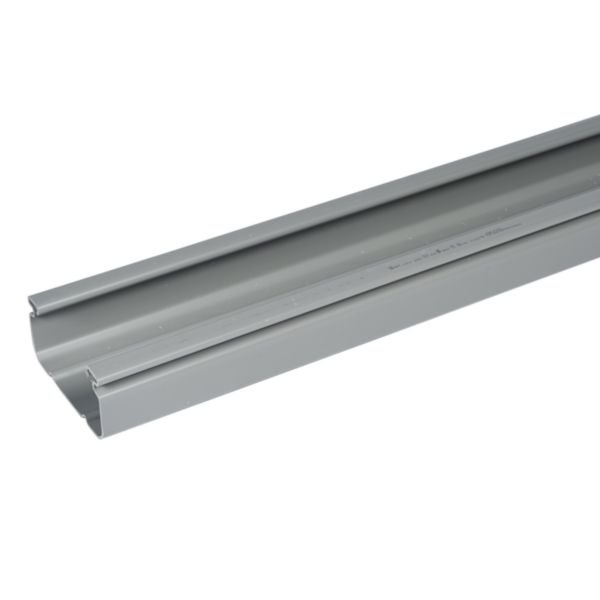

PVC Cable Tray Unperforated 200mm x 100mm | Durable PVC Material | 3.8mm Thickness | Grey Color | @Each of 1 | by Cablofil
The PVC Cable Tray Unperforated 200mm x 100mm is designed for effective cable management in commercial and industrial settings. Made from durable polyvinyl chloride (PVC) with a robust 3.8mm thickness, it provides maximum cable protection. Ideal for routing and protecting electrical cables indoors, this tray ensures compliance with safety standards while contributing to sustainable solutions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Height: 100 mm
- Width: 200 mm
- Length: 3000 mm
- Material thickness: 3.8 mm
- Usable cross section: 16979 mm²
- Material: Polyvinyl chloride (PVC)
- Surface protection: Untreated
- Colour: Grey (RAL 7030)
- Operating temperature: -5°C to 60°C
- Storage temperature: -20°C to 60°C
- Halogen free: No
- Conforms to EN 61537
- Dimensions (H x L x W): 100mm x 3000mm x 200mm
- Weight: 4.5 kg
Key Features
- Unperforated design for maximum cable protection
- Made from durable polyvinyl chloride (PVC)
- Grey color (RAL 7030) for standard industrial use
- Material thickness of 3.8 mm for robust support
- Operating temperature range from -5°C to 60°C
Professional Installation Requirements
- Professional installation by qualified electrical contractors is recommended to ensure compliance with electrical safety standards and proper cable management.
Applications
- Cable management in commercial and industrial electrical installations
- Routing and protection of electrical cables in buildings
- Suitable for indoor use in electrical wiring systems
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- PVC material is recyclable and contributes to sustainable cable management solutions
- Durable construction reduces the need for frequent replacements, minimizing waste
Warranty Information
Standard manufacturer warranty applies; please refer to Legrand for specific warranty details.
Available Now
The Legrand PVC Cable Tray Unperforated 200mm x 100mm x 3m Length is available for immediate purchase, ideal for commercial and industrial electrical cable management applications.
