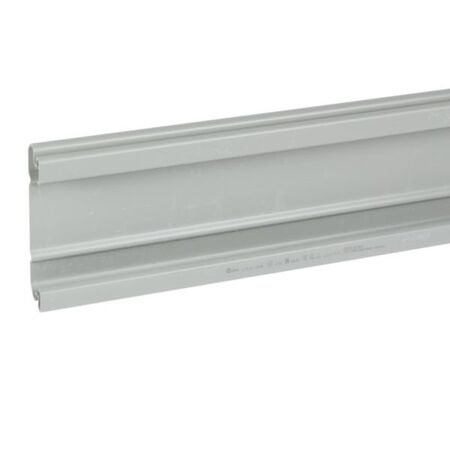

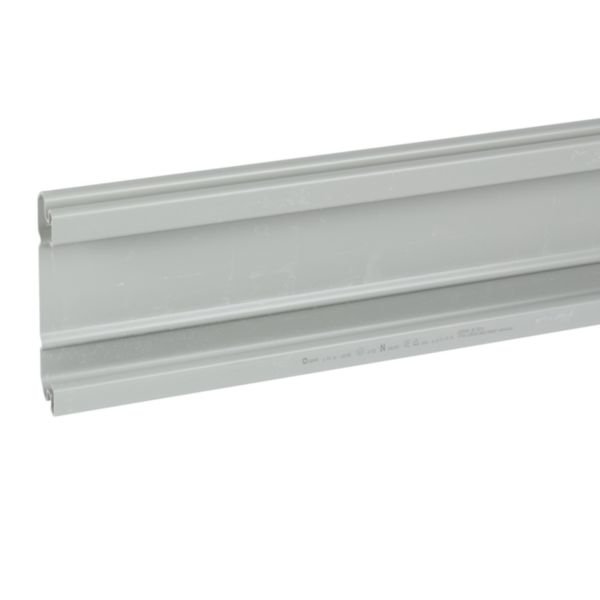

PVC Cable Tray Unperforated | 200mm x 50mm | Durable PVC Material | Grey Color | @Each of 1 | by Cablofil
The PVC Cable Tray Unperforated is designed for effective cable management in commercial and industrial settings. With a robust 2.5mm thickness and a grey finish, it ensures maximum protection for electrical cables while maintaining a standard industrial appearance. Ideal for routing and protecting cables in dry environments, this tray is made from durable PVC, offering a long service life and reducing environmental impact.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PVC Cable Tray Unperforated | 200mm x 50mm | Durable PVC Material | Grey Color | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: 637730
Alternatively Known As: PVC Cable Tray, Cable Management Tray, Electrical Cable Tray, Unperforated Cable Tray
Technical Specifications
- Height: 50 mm
- Width: 200 mm
- Length: 3000 mm
- Material Thickness: 2.5 mm
- Usable Cross Section: 7934 mm²
- Material: Polyvinyl chloride (PVC)
- Surface Protection: Untreated
- Colour: Grey (RAL 7030)
- Operating Temperature: -5°C to 60°C
- Storage Temperature: -20°C to 60°C
- Halogen Free: No
- Conforms to EN 61537
- Dimensions (H x L x W): 50mm x 3000mm x 200mm
- Weight: 3.5 kg
Key Features
- Unperforated design for maximum cable protection
- Made from durable polyvinyl chloride (PVC)
- Grey color (RAL 7030) for standard industrial appearance
- Material thickness of 2.5 mm for strength and durability
- Operating temperature range from -5°C to 60°C
Professional Installation Requirements
- Installation should be performed by qualified electrical professionals to ensure compliance with electrical standards and safety regulations.
Applications
- Cable management in commercial and industrial electrical installations
- Routing and protection of electrical cables in buildings
- Suitable for indoor use in dry environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- PVC material is recyclable and designed for long service life reducing replacement waste
- Non-corrosive material reduces environmental impact compared to metal trays
Warranty Information
Standard manufacturer warranty applies; please refer to Legrand for specific warranty details.
Available Now
Legrand PVC Cable Tray Unperforated 200mm x 50mm x 3m Length is available for immediate purchase, ideal for commercial and industrial cable management applications.
