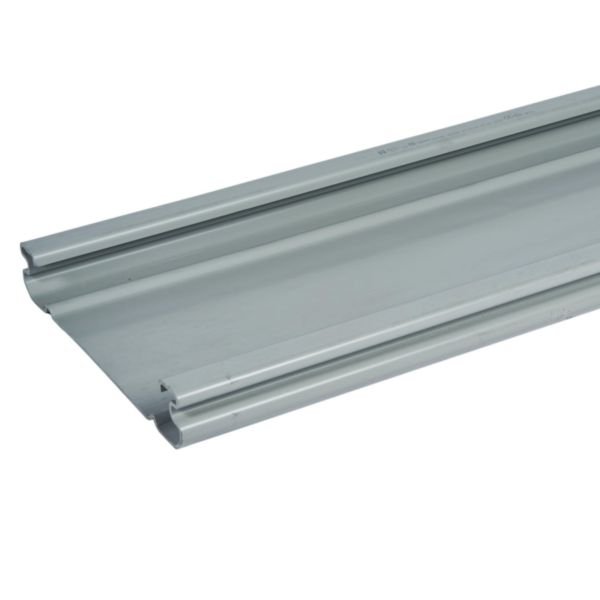

PVC Cable Tray Unperforated 300mm x 50mm | Durable PVC Material | Grey RAL 7030 | @Each of 1 | by Cablofil
The PVC Cable Tray Unperforated 300mm x 50mm is designed for effective cable management in commercial and industrial settings. Made from durable polyvinyl chloride (PVC), it offers maximum cable protection with an untreated surface. Ideal for routing and protecting electrical cables indoors, this tray ensures compliance with AS/NZS 3000 standards, making it a reliable choice for professional installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PVC Cable Tray Unperforated 300mm x 50mm | Durable PVC Material | Grey RAL 7030 | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: 637740
Alternatively Known As: PVC Cable Tray, Cable Management Tray, Electrical Cable Tray, Unperforated Cable Tray
Technical Specifications
- Height: 50 mm
- Width: 300 mm
- Material thickness: 3.5 mm
- Length: 3000 mm
- Usable cross section: 12825 mm²
- Material: Polyvinyl chloride (PVC)
- Operating temperature: -5°C to 60°C
- Storage temperature: -20°C to 60°C
- Surface protection: Untreated
- Colour: Grey (RAL 7030)
- Halogen free: No
- Side perforation: No
- Bottom perforation: No
- With cover: No
- Suitable for circuit integrity: No
- Dimensions (H x L x W): 50mm x 3000mm x 300mm
- Weight: 4.5 kg
Key Features
- Unperforated design for maximum cable protection
- Made from durable polyvinyl chloride (PVC)
- Grey color with RAL 7030 standard
- Operating temperature range from -5°C to 60°C
- Untreated surface
- Non-halogen free material
Professional Installation Requirements
- Installation should be performed by a qualified electrician or professional installer to ensure compliance with electrical safety standards.
Applications
- Cable management in commercial and industrial electrical installations
- Routing and protection of electrical cables in buildings
- Suitable for indoor use in electrical wiring systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- PVC material is recyclable and helps in reducing environmental impact
- Durable construction reduces the need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to Legrand for specific warranty details.
Available Now
The Legrand PVC Cable Tray Unperforated 300mm x 50mm x 3m Length is available for immediate purchase, ideal for commercial and industrial cable management applications.
