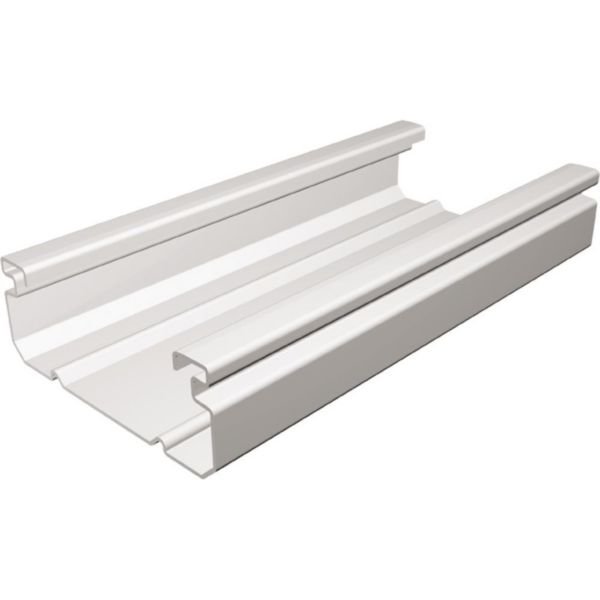

PVC Cable Tray Unperforated 300mm | Durable PVC Material | Grey Color | @Each of 1 | by Cablofil
The PVC Cable Tray Unperforated 300mm is designed for effective cable management in commercial and industrial settings. Made from durable polyvinyl chloride (PVC), it features an unperforated design for maximum cable protection. Ideal for routing and protecting electrical cables in dry indoor environments, this tray ensures compliance with AS/NZS 3000 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Height: 75 mm
- Width: 300 mm
- Length: 3000 mm
- Material thickness: 3.8 mm
- Usable cross section: 19601 mm²
- Material: Polyvinyl chloride (PVC)
- Operating temperature: -5°C to 60°C
- Storage temperature: -20°C to 60°C
- Colour: Grey (RAL 7030)
- Surface protection: Untreated
- Halogen free: No
- No perforations on sides or bottom
- No cover included
- Dimensions (H x L x W): 75mm x 3000mm x 300mm
- Weight: 4.5 kg
Key Features
- Unperforated design for maximum cable protection
- Made from durable polyvinyl chloride (PVC)
- Grey color (RAL 7030) for standard industrial use
- Operating temperature range from -5°C to 60°C
- Untreated surface with no halogen content
Professional Installation Requirements
- Installation should be performed by a qualified electrician or professional installer to ensure compliance with electrical safety standards.
Applications
- Cable management in commercial and industrial electrical installations
- Routing and protection of electrical cables in buildings
- Suitable for indoor use in dry environments
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- PVC material is recyclable and contributes to reduced environmental impact
- Durable construction reduces the need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to Legrand for specific warranty details.
Available Now
The Legrand PVC Cable Tray Unperforated 300mm x 75mm x 3m Length is available now for immediate purchase. Ideal for commercial and industrial cable management applications.
