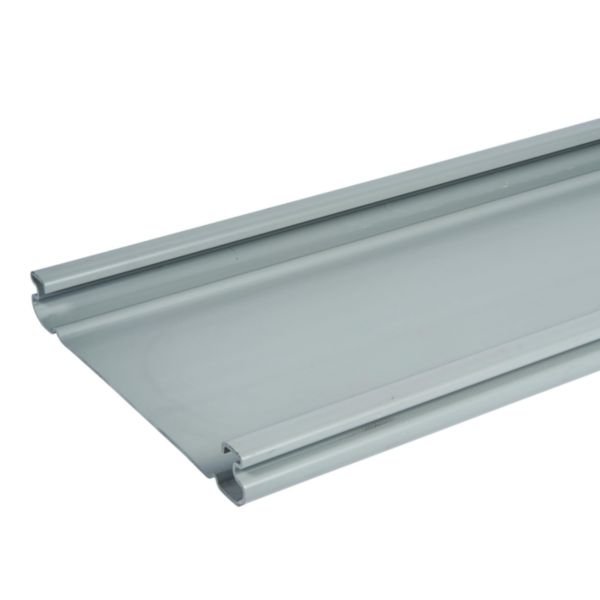

PVC Cable Tray Unperforated | Durable 4mm Thickness | Grey RAL 7030 | @Each of 1 | by Cablofil
The PVC Cable Tray Unperforated is designed for effective cable management in commercial and industrial settings. With a robust 4mm thickness and a grey finish (RAL 7030), it ensures maximum protection for electrical cables. Ideal for indoor use, this tray supports a temperature range of -5°C to 60°C, making it perfect for various electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PVC Cable Tray Unperforated | Durable 4mm Thickness | Grey RAL 7030 | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: 637750
Alternatively Known As: PVC Cable Tray, Cable Management Tray, Electrical Cable Tray, Unperforated Cable Tray
Technical Specifications
- Height: 50 mm
- Width: 400 mm
- Length: 3000 mm
- Material thickness: 4 mm
- Usable cross section: 17821 mm²
- Material: Polyvinyl chloride (PVC)
- Surface protection: Untreated
- Colour: Grey (RAL 7030)
- Operating temperature: -5°C to 60°C
- Storage temperature: -20°C to 60°C
- Halogen free: No
- Conforms to EN 61537
- Dimensions (H x L x W): 50mm x 3000mm x 400mm
- Weight: 5.0 kg
Key Features
- Unperforated design for maximum cable protection
- Made from durable polyvinyl chloride (PVC)
- Grey color with RAL 7030 standard
- Material thickness of 4 mm for robust support
- Operating temperature range from -5°C to 60°C
Professional Installation Requirements
- Installation should be performed by qualified professionals to ensure compliance with electrical and building standards.
Applications
- Cable management in commercial and industrial electrical installations
- Routing and protection of electrical cables in buildings
- Suitable for indoor use in electrical wiring systems
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- PVC material is recyclable and contributes to sustainable cable management solutions
- Durable construction reduces the need for frequent replacements, minimizing waste
Warranty Information
Standard manufacturer warranty applies; please refer to Legrand for specific warranty details.
Available Now
Legrand PVC Cable Tray Unperforated 400mm x 50mm x 3m Length is available for immediate purchase, ideal for commercial and industrial cable management applications.
