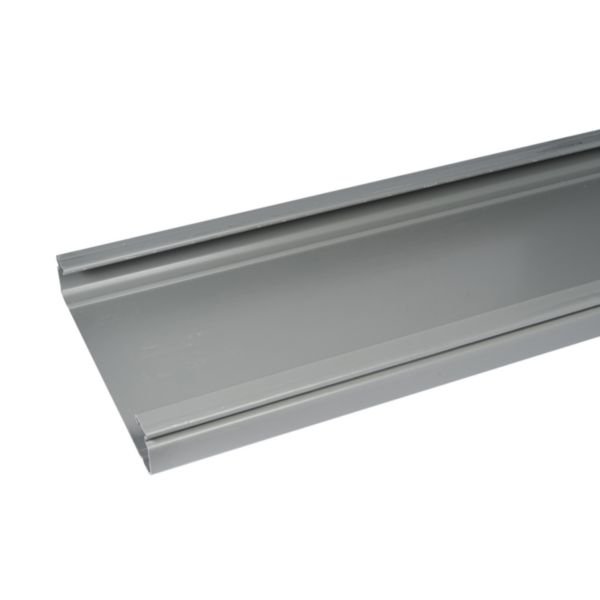

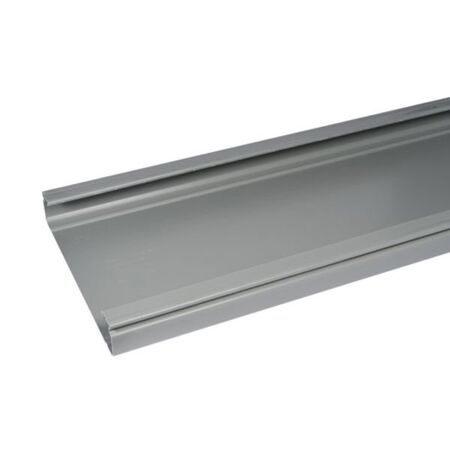

PVC Cable Tray Unperforated 600mm | Durable PVC Material | Grey Color | @Each of 1 | by Cablofil
The PVC Cable Tray Unperforated 600mm is designed for effective cable management in commercial and industrial settings. Made from durable polyvinyl chloride (PVC), it features a robust 4.8 mm thickness and a standard grey color (RAL 7030) for a professional appearance. Ideal for routing and protecting electrical cables indoors, this tray ensures maximum cable protection with its unperforated design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PVC Cable Tray Unperforated 600mm | Durable PVC Material | Grey Color | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: 637940
Alternatively Known As: PVC Cable Tray, Cable Management Tray, Electrical Cable Tray, Unperforated Cable Tray
Technical Specifications
- Height: 100 mm
- Width: 600 mm
- Length: 3000 mm
- Material thickness: 4.8 mm
- Usable cross section: 55206 mm²
- Material: Polyvinyl chloride (PVC)
- Surface protection: Untreated
- Colour: Grey (RAL 7030)
- Operating temperature: -5°C to 60°C
- Storage temperature: -20°C to 60°C
- Halogen free: No
- No side or bottom perforations
- No cover included
- Dimensions (H x L x W): 100mm x 3000mm x 600mm
- Weight: 5.5 kg
Key Features
- Unperforated design for maximum cable protection
- Made from durable polyvinyl chloride (PVC)
- Grey color (RAL 7030) for standard industrial appearance
- Material thickness of 4.8 mm for robust construction
- Operating temperature range from -5°C to 60°C
Professional Installation Requirements
- Professional installation by qualified electricians or cable management specialists is recommended to ensure compliance with electrical safety standards.
Applications
- Cable management in commercial and industrial electrical installations
- Routing and protection of electrical cables in buildings
- Suitable for indoor use in dry environments
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- PVC material is recyclable and helps in reducing environmental impact
- Durable construction reduces the need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to Legrand for specific warranty details.
Available Now
The Legrand PVC Cable Tray Unperforated 600mm x 100mm x 3m Length is available now for immediate purchase. Ideal for commercial and industrial cable management applications.
