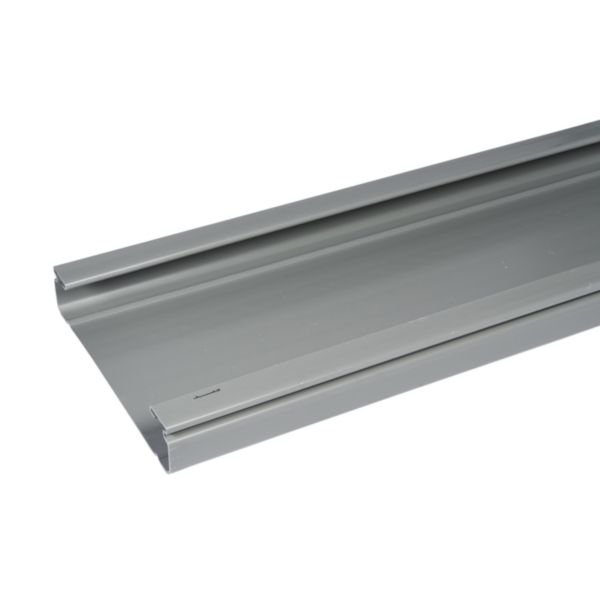

PVC Cable Tray Unperforated | Durable PVC Material | Grey RAL 7030 Finish | @Each of 1 | by Cablofil
The PVC Cable Tray Unperforated is designed for effective cable management in commercial and industrial settings. Made from durable polyvinyl chloride (PVC), it features an unperforated design for maximum cable protection and operates within a temperature range of -5°C to 60°C. Ideal for routing and protecting electrical cables indoors, this tray ensures compliance with safety standards while minimizing environmental impact.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Height: 100 mm
- Width: 500 mm
- Material thickness: 4.5 mm
- Length: 3000 mm
- Usable cross section: 45893 mm²
- Material: Polyvinyl chloride (PVC)
- Operating temperature: -5 to 60 °C
- Storage temperature: -20 to 60 °C
- Surface protection: Untreated
- Colour: Grey (RAL 7030)
- No side or bottom perforations
- No cover included
- Not suitable for circuit integrity
- Not halogen free
- Dimensions (H x L x W): 100mm x 3000mm x 500mm
- Weight: 5.5 kg
Key Features
- Unperforated design for maximum cable protection
- Made from durable polyvinyl chloride (PVC)
- Grey color with RAL 7030 finish
- Operating temperature range from -5°C to 60°C
- Untreated surface
- Non-halogen free material
Professional Installation Requirements
- Professional installation by qualified electrical or construction personnel is recommended to ensure compliance with safety and building codes.
Applications
- Cable management in commercial and industrial electrical installations
- Routing and protection of electrical cables in buildings
- Suitable for indoor use in electrical wiring systems
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- PVC material is recyclable and helps in reducing environmental impact
- Durable construction reduces the need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to Legrand for specific warranty details.
Available Now
The Legrand PVC Cable Tray Unperforated 500mm x 100mm x 3m Length is available now for immediate purchase. Ideal for commercial and industrial cable management applications.
