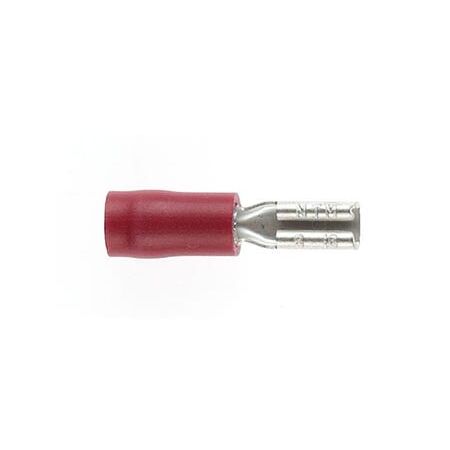

QC Terminal Insulated 2.8x0.8mm 0.5-1.5mm2 Red DG Cabac

BRAND: CABAC
SKU: QC1.25-2.8DG
$20.00
100 PAK ($0.20 per PAK)
+ −
30 Days Return Electricians Unlock Trade Access
Cabac quick-connect disconnect terminal, 2.8x0.8mm. Ideal for spade and tab connections.
Technical Specifications
  • Conductive Material (Quick Connect Range): Brass 30% Zinc, 70% Copper
  • Tensile Strength: 580 MPa
  • Ductile Rating: 6% min
  • Final Metal State: Annealed
  • Working Temperature: Pre-Insulate -40°C to +105°C, Brass 145°C, Tin plated 160°C
  • Electroplating Material: Tin with 99.9% Tin Content, Plating Thickness 2.5 microns
  • Insulation Material: PVC
  • Breakdown Voltage: 1.5kV (min)
  • Insulation Resistance: Above 100 meg ohms
  • Working Voltage: Up to 300V AC/DC
  • Torque Recommendations: Metric 8.8 tensile grade hardware, torque varies by thread diameter
  • Nominal Pull Out Force varies by wire size from 4.6 kg to 35.2 kg
  • Dimensions (H x L x W): 8mm x 10mm x 28mm
  • Weight: 0.1 kg
Key Features
  • High quality product meeting International Standards
  • Funnel entry terminals allow easy conductor entry, minimizing substandard crimps
  • Long term electrical integrity
  • Translucent nylon in fully insulated quick connector reduces installation errors
  • Voltage rating 300V
  • Double grip design separates crimp barrels for conductor and insulation
  • PVC insulated for safety
  • Conforms to AS 3169 and AS 4437
Professional Installation Requirements
  • Should be crimped onto the conductor with a quality crimper designed for this specific terminal type. Professional installation by a qualified electrician is recommended to ensure safety and compliance.
Applications
  • Electrical wiring connections in switchgear, contactors, terminal blocks
  • Industrial and residential electrical installations requiring quick connect terminals
  • Automotive and machinery electrical connections
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Durable materials reduce need for frequent replacements
  • PVC insulation designed for long-term use minimizing waste
  • High electrical efficiency reduces energy loss
Warranty Information

Warranty against manufacturing defects as per Cabac standard policy. Please refer to supplier for detailed warranty terms.

Available Now

The Cabac Red Quick Connect 2.8 x 0.8mm Tab Double Grip Terminal is available for immediate purchase. Ideal for electrical and power connectivity applications requiring reliable and safe terminal connections.
