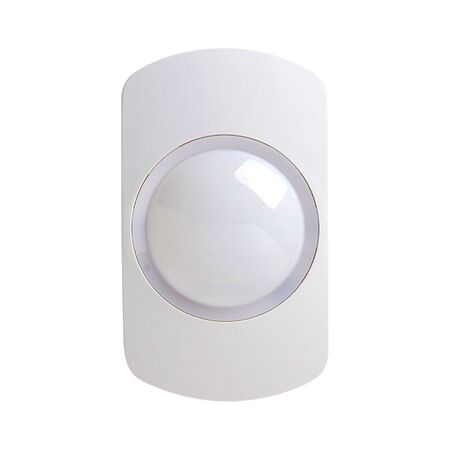

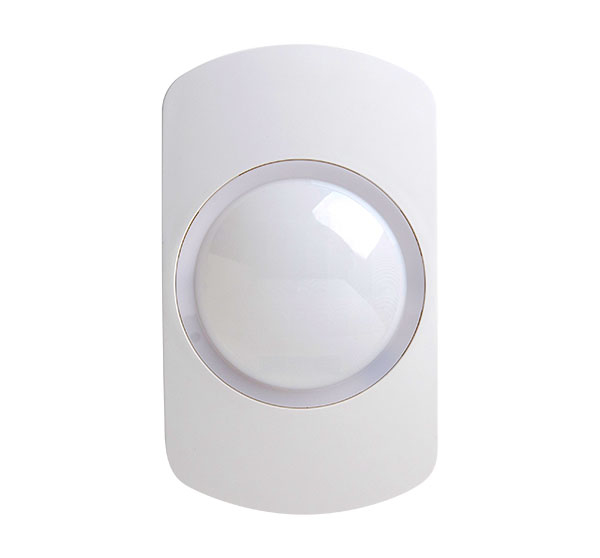

Quad PIR Motion Detector 20m 90 Degree Selectable Pet Immunity Tecom
Tecom quad PIR motion detector features 20m range, 90 degree coverage and selectable pet immunity. Ideal for alarm systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Guardall GQ20, 20m Quad PIR Detector, Wired Pet-Immune PIR Motion Sensor, AKC-0004
Technical Specifications
- Product Code: AKC-0004
- Sensor Type: Quad-element pyroelectric infrared sensor
- Detection Range: 20m
- Coverage Angle: 90° volumetric
- Pet Immunity: Selectable PetWise mode, up to 20kg at ranges up to 12m
- Operating Voltage: 9–15V DC; nominal 12V DC
- Maximum Current: 12mA at 12V DC
- Quiescent Current: 9.3mA at 12V DC
- Operating Temperature: -10°C to 55°C
- Relative Humidity: 0–95% non-condensing
- Mounting: Wall mount; compatible ceiling mounts available
- Recommended Mounting Height: 1.5–3m
- Indicator: Cyan LED
- Detection Grade: Grade 2
- Manufacturer Compliance: EN50131-2-2
- Dimensions (H x L x W): 112mm x 43mm x 65mm
- Weight: 0.124 kg
Key Features
- 20m detection range with 90° volumetric coverage
- Quad-element pyro technology for reliable motion detection
- Selectable PetWise mode to reduce nuisance alarms from small animals
- Front-loaded, fully sealed electronics
- Selectable sensitivity adjustment
- Digital temperature compensation
- Active white-light rejection
- Flexible mounting points and adjustable terminal block
- Built-in end-of-line resistor support
- Low-current wired operation
Professional Installation Requirements
- Installation, wiring and commissioning should be performed by a qualified security installer in accordance with the alarm system manufacturer's instructions and applicable Australian requirements. Walk testing is required after installation.
Applications
- Residential intruder alarm systems
- Commercial security alarm systems
- Retail premises and offices
- Healthcare and education facilities
- Indoor areas requiring wide-angle motion detection with selectable pet immunity
Standards & Compliance
- AS 2201.3-1991 is the applicable Australian standard for internal intruder-alarm detection devices
- Manufacturer documentation specifies EN50131-2-2 Grade 2 compliance
Environmental Benefits
- Low quiescent current of approximately 9.3mA supports reduced power consumption in continuously powered alarm systems
- Fully sealed electronics and durable construction can extend service life and reduce replacement waste
- Selectable pet immunity can reduce nuisance alarms and unnecessary call-outs
Warranty Information
Tecom hardware is covered by a 5-year warranty from the date of manufacture, subject to the applicable warranty terms and exclusions.
Available Now
Available through Tecom, Guardall and authorised Australian security-system distributors, subject to distributor stock.
