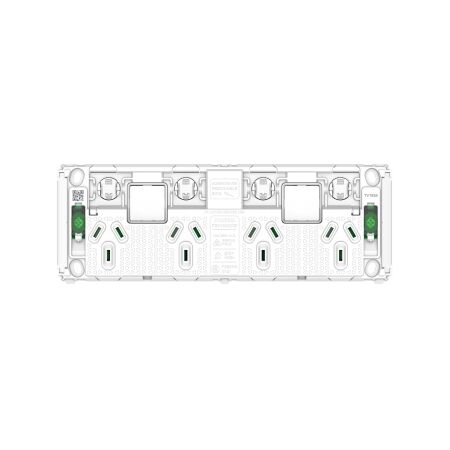

Quad Power Point Grid 250V 10A | Horizontal Mount | Screw Covers by Clipsal

BRAND: Clipsal
SKU: P3015-4G
$33.20 List price: $49.80
+
Quad power point grid with 250V, 10A rating and horizontal mount—ideal for commercial spaces like campuses and shopping centres. Built for safety with screw covers and professional installation recommended.

Product Name/Title: Pro Series, Quad Power Point Grid, Horizontal Mount, 250V, 10A

Brand: Clipsal

SKU: P3015-4G

Alternatively Known As: Quad Power Point, Switched Power Point, Horizontal Power Point

Technical Specifications
  • Rated current: 10 A at 250 V AC 50 Hz
  • Outlet poles configuration: 2P + E with shutter
  • Device mounting: flush
  • Number of power socket outlets: 4
  • Connections - terminals: 3 screw terminals
  • Clamping connection capacity: 1 x 2.5...4 x 2.5 mm² for rigid or stranded cable(s)
  • Wire stripping length: 16 mm
  • Dimensions (H x L x W): 72mm x 36mm x 205mm
  • Weight: 0.178 kg
Key Features
  • Rated for 10A, 250V
  • Designed for horizontal installation
  • Screw covers to prevent access once installed
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Commercial: Educational campuses, shopping centres, airports
Standards & Compliance
  • Complies with AS/NZ 3112
Environmental Benefits
  • Packaging made with recycled cardboard
Warranty Information

Standard warranty applies.

Available Now

The Clipsal Pro Series Quad Power Point Grid is available now for immediate purchase. Ideal for commercial applications.

P3015-4G (P3015-4G, 227 Kb) [Download]
