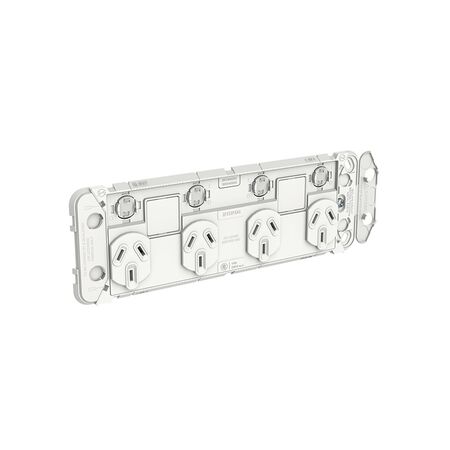

Quad Switch Socket Outlet Grid | 250V 10A | Horizontal Mount
Quad switch socket outlet grid with 250V 10A capacity and horizontal mount—ideal for modern electrical setups. Built for versatility, with 2 removable extra switch apertures for customization.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Quad Switch Socket Outlet Grid | 250V 10A | Horizontal Mount
SKU: 3015/4XXUAG
Alternatively Known As: Quad switch grid plate, 4 gang switch grid, Clipsal 4 switch grid, electrical switch grid plate
Technical Specifications
- Material: Polycarbonate (PC) for grid plate
- Rated current: 10 A, 250 V AC, 50 Hz
- Outlet poles configuration: 1P + E with shutter
- Ground lug position: Straight 180 degree
- Fixing mode: By screws, horizontal
- Connections - terminals: 3 x screw terminals
- Clamping connection capacity: 2.5 mm² (rigid)
- Wire stripping length: 16 mm
- Embedding depth: 18 mm
- Electrical durability: 12,000 cycles
- Ambient air temperature for operation: 0 to 45 °C
- Relative humidity: 10 to 95%
- Dimensions (H x L x W): 210mm x 26mm x 71mm
- Weight: 0.178 kg
Key Features
- Modern slim, sleek, and clean design
- Horizontal mount with 2 removable extra switch apertures
- Flush device mounting for a neat finish
- Grid plate type with 4 switch apertures
- Rated for 10A, 250V AC, 50Hz
- 3 x screw terminals with Philips No 2 (PH2) screw heads
- Supports up to 4 cables with 2.5 mm² rigid clamping connection capacity
- Electrical durability of 12,000 cycles
- Includes earthing contact with shutter for safety
Professional Installation Requirements
- Professional installation by a licensed electrician is recommended to ensure compliance with electrical safety standards and proper mounting.
Applications
- Residential: Homes and apartments
- Commercial: Offices, retail spaces, hospitality venues
- General: Any indoor environment requiring multiple switch control
Standards & Compliance
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Durable polycarbonate construction reduces need for frequent replacements
- Designed for long electrical durability minimizing waste
- Supports energy-efficient electrical installations
Warranty Information
Standard manufacturer warranty applies. Please refer to Clipsal Iconic warranty terms for details.
Available Now
The Clipsal Iconic Quad Switch Socket Outlet Grid is available now for immediate purchase. Ideal for residential and commercial indoor electrical installations requiring multiple switch control.
