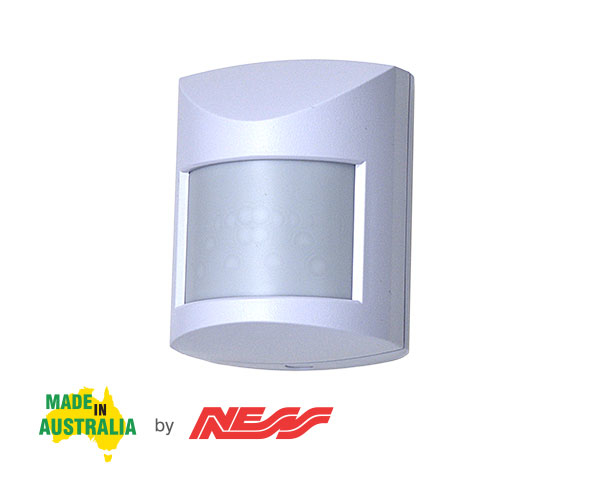

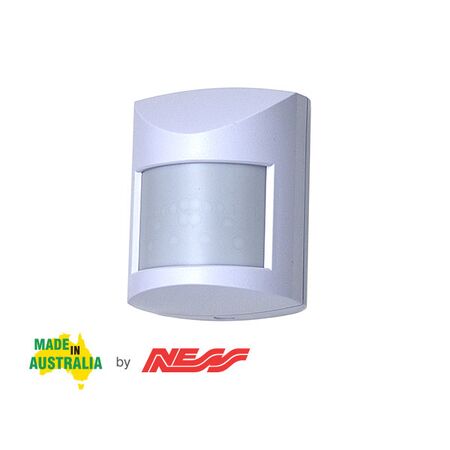

Quantum Quad Pet PIR Sensor 15m Pet Immune Tamper Protection Ness
Ness Quantum Quad pet PIR sensor features a 15m range, pet immunity and tamper protection. Ideal for alarm systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ness Quantum Quad PET PIR, Quantum-Q Pet Aware PIR, 106-259 Pet PIR Sensor
Technical Specifications
- Sensor Type: Quad-element pyroelectric PIR
- Coverage: Up to 15m x 15m at 90°
- Detection Zones: 20 quad-element zones
- Pet Immunity: Single pet up to 18kg or multiple pets up to 10kg total
- Range Selection: High/Low, 15m/12m
- Pulse Count: Selectable 1–2 or 3–4
- Operating Voltage: 9–15V DC
- Current Draw: 7mA
- Alarm Output: Normally closed solid-state relay, maximum 100mA at 24V
- Tamper Output: Normally closed switch
- Alarm Indication: Red LED
- Warm-Up Period: 30 seconds
- Alarm Period: 5 seconds
- Operating Temperature: 0°C to 50°C
- Dimensions (H x L x W): 85mm x 45mm x 66mm
- Weight: 0.12 kg
Key Features
- Quad-element PIR sensor for improved detection performance
- Pet-aware detection for indoor alarm applications
- 15m maximum detection range with selectable 12m low-range setting
- Front-cover tamper protection
- Adjustable pulse count and detection range
- High RF, ESD and white-light immunity
- Silent solid-state relay with high immunity to magnetic fields
- Optional Ness Quantum swivel bracket available
- Designed and manufactured in Australia
Professional Installation Requirements
- Installation and connection should be performed by a suitably qualified security installer. Configure, test and commission the detector as part of the complete intruder alarm system in accordance with the system manufacturer's instructions and applicable Australian requirements.
Applications
- Residential intruder alarm systems
- Commercial security alarm systems
- Indoor room and perimeter movement detection
- Pet-aware alarm installations
- Replacement or extension of compatible Ness hardwired alarm systems
Standards & Compliance
- Applicable detector standard: AS 2201.3:1991, Intruder alarm systems—Detection devices for internal use
- System installation framework: AS/NZS 2201.1:2007, Intruder alarm systems—Client's premises—Design, installation, commissioning and maintenance
Environmental Benefits
- Low 7mA operating current helps minimise power consumption in continuously powered alarm systems
- Long service life and replaceable installation compatibility can reduce electronic waste
- Ness publishes RoHS compliance information for its product range
Warranty Information
Ness manufactured or supplied products are covered by a 3-year warranty from the date of purchase, subject to Ness warranty terms and exclusions.
Available Now
Available through Ness and authorised Australian security distributors.
