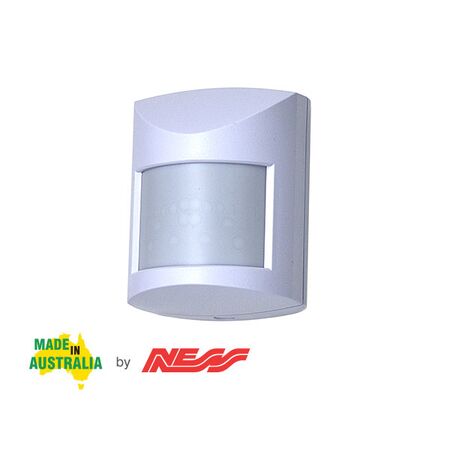

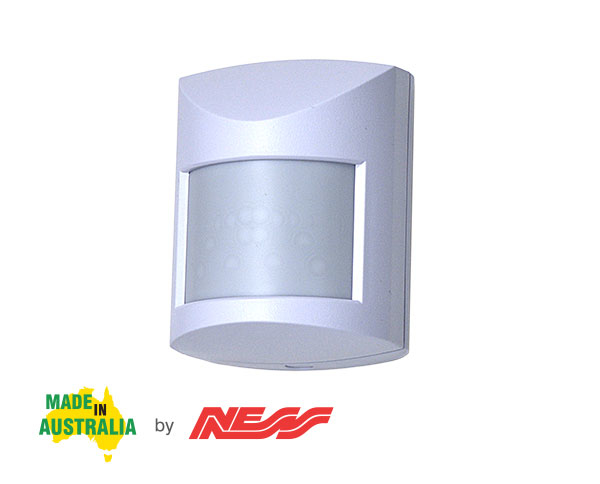

Quantum Quad PIR Motion Detector 15m Range Ness

BRAND: Ness
SKU: 106-079
$49.80 List price: $66.50
+ −
30 Days Return Electricians Unlock Trade Access
Ness Quantum Quad PIR motion detector features a 15m range, high R.F. immunity and silent relay. Ideal for alarm systems.

Alternatively Known As: Ness Quantum Quad PIR, Quantum-Q Quad Element PIR, Ness 106-079 PIR Detector

Technical Specifications
  • Part Number: 106-079
  • Sensor: Quad-element pyroelectric PIR
  • Coverage: Up to 15 m x 15 m at 90°
  • Detection Zones: 20 quad-element zones
  • Range: Selectable high or low; 15 m maximum or 12 m maximum
  • Pulse Count: Selectable 1–2 or 3–4
  • Operating Voltage: 9–15 V DC
  • Current Draw: 7 mA
  • Relay Output: Silent solid-state relay with normally closed contacts, 100 mA maximum
  • Tamper Output: Normally closed switch
  • Alarm Indication: Red LED
  • Operating Temperature: 0–50 °C
  • Mounting Height: 1.1–3.1 m; 2.1–2.3 m optimal
  • Immunity: High RF, ESD and white-light immunity
  • Construction: Australian designed and made
  • Dimensions (H x L x W): 85mm x 45mm x 66mm
  • Weight: 0.15 kg
Key Features
  • Quad-element pyro sensor for reliable motion detection
  • 15 m x 15 m wide-angle coverage
  • Selectable detection range and pulse count
  • High RF, electrostatic discharge and white-light immunity
  • Silent solid-state relay with high immunity to magnetic fields
  • Front-cover tamper protection
  • Suitable for domestic and commercial hardwired alarm systems
  • Optional Quantum swivel mounting bracket available
  • Australian designed and made
Professional Installation Requirements
  • Installation, wiring and commissioning should be performed by a suitably qualified security installer in accordance with the manufacturer's instructions and the applicable requirements of AS/NZS 2201.1.
Applications
  • Domestic intruder alarm systems
  • Commercial security alarm systems
  • Internal motion detection for hardwired alarm panels
  • Security monitoring of offices, homes, retail premises and light-commercial buildings
Standards & Compliance
  • Applicable installation framework: AS/NZS 2201.1:2007, Intruder alarm systems—client premises design, installation, commissioning and maintenance
Environmental Benefits
  • Low 7 mA current draw supports reduced energy consumption within the alarm system
  • Durable solid-state relay and replaceable detector design can extend service life and reduce electronic waste
  • Ness publishes RoHS compliance documentation for its product range; product-specific declaration should be confirmed where required
Warranty Information

Ness manufactured or supplied products are covered by a 3-year warranty from the date of purchase, unless otherwise specified. Faulty products are repaired or replaced at Ness Corporation's discretion, subject to the warranty terms and exclusions.

Available Now

Available through Ness Corporation and authorised Australian security distributors.
