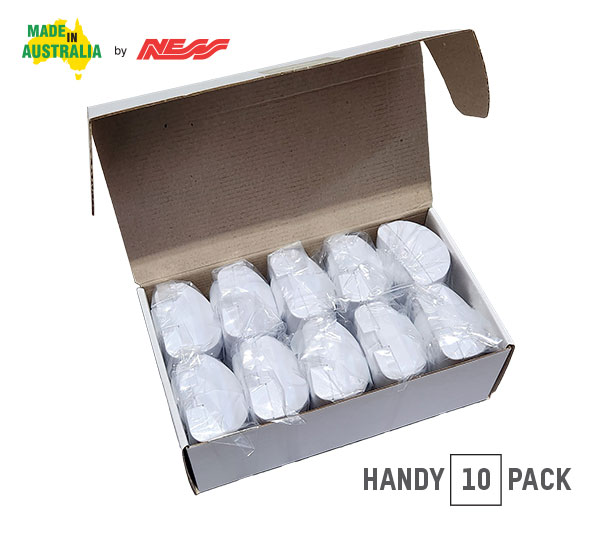

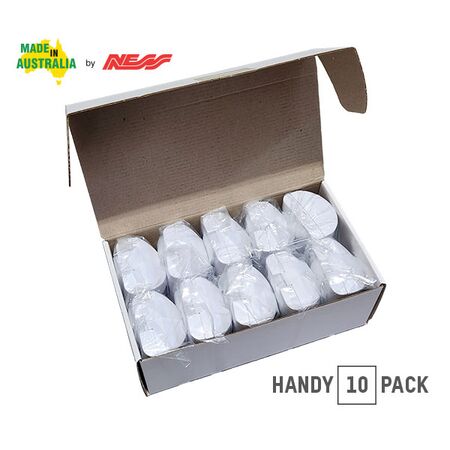

Quantum Quad PIR Motion Detector Pack of 10 Ness

BRAND: Ness
SKU: 106-079-10
$498.40 List price: $664.60
+ −
30 Days Return Electricians Unlock Trade Access
Ness Quantum Quad PIR motion detector pack features energy-efficient operation in a compact design. Ideal for alarm systems.

Alternatively Known As: Ness Quantum Quad PIR, Quantum-Q 15m PIR, Ness Hardwired Quad PIR, Ness 106-079-10

Technical Specifications
  • Product Type: Hardwired passive infrared motion detector
  • Pack Quantity: 10 detectors
  • Sensor Type: Quad-element pyroelectric sensor
  • Coverage: Up to 15m x 15m at 90°
  • Detection Zones: 20 quad-element zones
  • Range Adjustment: Selectable high or low, 15m or 12m maximum
  • Pulse Count: Selectable 1–2 or 3–4
  • Operating Voltage: 9–15V DC
  • Current Draw: 7mA
  • Alarm Output: Normally closed solid-state relay, 100mA maximum
  • Tamper Output: Normally closed switch
  • Alarm Indication: Red LED
  • Warm-Up Time: 30 seconds
  • Alarm Time: 5 seconds
  • Operating Temperature: 0°C to 50°C
  • Mounting Height: 1.1m minimum, 3.1m maximum; 2.1–2.3m optimal
  • Mounting: Wall or corner mount; optional ceiling bracket available
  • Manufacturing Origin: Australian designed and made
  • Dimensions (H x L x W): 85mm x 45mm x 66mm
  • Weight: 0.79 kg
Key Features
  • Quad-element sensor improves detection performance and noise immunity
  • Wide-angle coverage up to 15m x 15m at 90°
  • Selectable pulse count and detection range
  • Front cover tamper protection
  • High RF, ESD and white-light immunity
  • Silent solid-state relay with high immunity to magnetic fields
  • Compact housing for domestic and commercial alarm installations
  • Compatible with optional Ness Quantum swivel mounting bracket
Professional Installation Requirements
  • Installation should be carried out by a qualified security alarm technician. The detector requires low-voltage hardwired connection to a compatible alarm panel, with the complete alarm installation designed, commissioned and maintained in accordance with applicable Australian requirements.
Applications
  • Residential intruder alarm systems
  • Commercial premises security systems
  • Office, retail and small business alarm installations
  • Internal room and hallway motion detection
  • Hardwired alarm panel zone protection
Standards & Compliance
  • Applicable installation framework: AS/NZS 2201.1:2007, Intruder alarm systems — client premises design, installation, commissioning and maintenance
  • Relevant detector performance reference: AS 2201.3:1991, Intruder alarm systems — detection devices for internal use; product-specific certification was not stated by the manufacturer
Environmental Benefits
  • Low 7mA operating current helps minimise energy consumption within continuously powered alarm systems
  • Long service life and durable solid-state switching can reduce replacement frequency and electronic waste
  • Ness publishes RoHS compliance information for its product range; product-specific RoHS certification should be confirmed where required
Warranty Information

Ness manufactured or supplied products are covered by a 3-year warranty from the date of purchase, subject to Ness warranty conditions and exclusions.

Available Now

Available through Ness Corporation and authorised Australian security and electrical distributors; the 10-pack is identified as Ness SKU 106-079-10.
