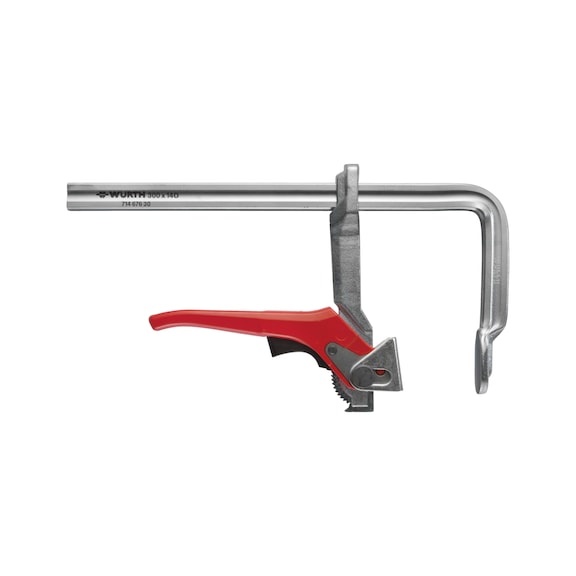

Quick-Action Lever Clamp | Steel Construction | Swivelling Pressure Plate | Fine Metered Ratchet Mechanism | by Wurth
The Quick-Action Lever Clamp is a versatile clamping tool made entirely of steel, designed for easy one-hand operation. With a swivelling steel pressure plate and a fine metered ratchet mechanism, it provides precise and flexible clamping for woodworking, metalworking, and assembly tasks. Its durable construction ensures a long service life, making it ideal for both professionals and DIY enthusiasts.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Quick-Action Lever Clamp | Steel Construction | Swivelling Pressure Plate | Fine Metered Ratchet Mechanism | by Wurth
Brand: Wurth
SKU: 71467616
Alternatively Known As: Steel Quick-Action Clamp, Lever Clamp, One-Hand Clamp, Wurth Steel Clamp
Technical Specifications
- Max. external clamping width (L1 max.): 160 mm
- Overhang (L2): 80 mm
- Profile thickness: 7.5 mm
- Profile width (B): 16 mm
- Swivelling steel pressure plate
- Fine metered ratchet mechanism
- Case-hardened steel pressure plate and sliding bar forged from a single piece
- Cam lever made from sintered steel with high surface hardness
- Dimensions (H x L x W): 40mm x 80mm x 160mm
- Weight: 0.5 kg
Key Features
- Easy and handy clamping tool for flexible, elastic, and sensitive clamping
- High flexibility with availability in various clamping widths
- Precise working due to swivelling steel pressure plate and fine metered ratchet mechanism
- Extremely wear-resistant with case-hardened steel pressure plate and sliding bar forged from a single piece
- Long service life of cam lever made from sintered steel with high surface hardness
- Easy one-hand operation
Professional Installation Requirements
- No professional installation required; designed for easy one-hand operation by users.
Applications
- Woodworking clamping
- Metalworking and fabrication
- Assembly and repair tasks
- Flexible and sensitive clamping needs
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable steel construction reduces need for frequent replacements, minimizing waste
- Electroplated components enhance longevity, reducing environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth for specific warranty details.
Available Now
The Wurth Quick-Action Lever Clamp is available now for immediate purchase. Ideal for woodworking, metalworking, and general assembly tasks requiring flexible and precise clamping.
