Quick Connect Nylon Cable Gland M20 | IP66/IP68 | UV Resistant & Halogen-Free | Black by Cabac

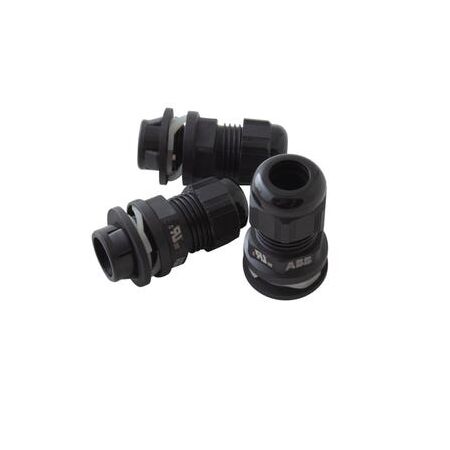

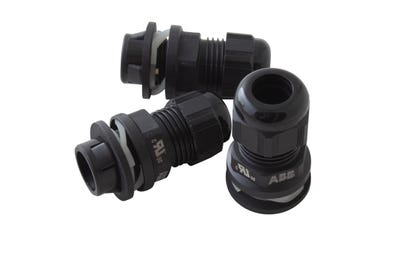

The Cabac GLAND QUICK CONNECT NYLON M20 7-13MM BLACK is a single-piece nylon cable gland designed for fast fitting without internal enclosure access. It provides IP66/IP68 ingress protection and is suitable for non-armoured, portable, and tray cables with UV-resistant and halogen-free construction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: GLAND QUICK CONNECT NYLON M20 7-13MM BLACK
Brand: Cabac
SKU: NPG-M202B
Alternatively Known As: Quick Connect Cable Gland, Nylon Cable Gland M20, IP68 Cable Gland, Push Twist Cable Gland
Technical Specifications
- Ingress Protection: IP66/IP68 (5 bar, 30 minutes)
- Operating Temperature: Normal -20°C to +100°C, Short-term -30°C to +150°C
- Material: Nylon (PA6) body, halogen-free; Chloroprene seals
- Colour: Black (RAL 9005)
- Dimensions (H x L x W): 40mm x 40mm x 25mm
- Weight: 0.02 kg
Key Features
- Single-piece construction; no locknut required
- Quick and efficient installation without internal enclosure access
- Low internal profile for compact applications
- Corrosion-resistant and halogen-free nylon (PA6) construction
- UV resistant for outdoor applications
Professional Installation Requirements
- Professional installation by a qualified electrician or technician is recommended to ensure proper sealing and compliance with IP ratings.
Applications
- General-purpose use
- Panel builders and volume installers
- Supports non-armoured, portable, and tray cable types
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free material reduces harmful emissions in case of fire
- RoHS-compliant, ensuring restriction of hazardous substances
- UV resistance extends product life, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac GLAND QUICK CONNECT NYLON M20 7-13MM BLACK is available for immediate purchase. Ideal for panel builders, volume installers, and general cable management applications.
