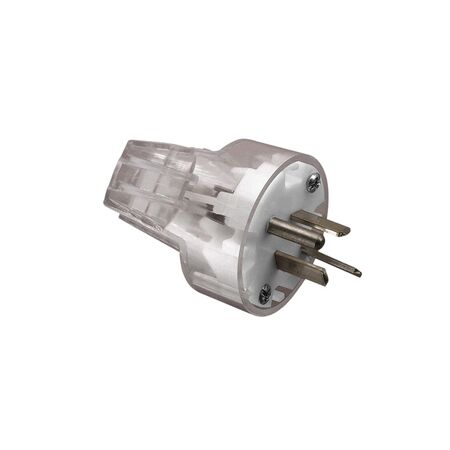

Quick Connect Plug 4 Pin 10A 250V | Transparent | Polycarbonate
Quick connect plug with 4 pins and 10A, 250V capacity—ideal for rewireable applications. Built for durability, with transparent polycarbonate construction and suitable for heavy-duty cords.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Quick Connect Plug 4 Pin 10A 250V | Transparent | Polycarbonate
SKU: 1439/4P-TR
Alternatively Known As: 4 Pin Quick Connect Plug, 10 Amp 250 Volt Plug, Transparent Electrical Plug, Polycarbonate 4 Pin Plug
Technical Specifications
- Rated Current: 10A
- Voltage Rating: 250V
- Material: Polycarbonate (Plastic)
- Connection System: Screwed terminal
- Angle of Plug: Straight
- Clock Hour Position: 7h
- Body Colour: Transparent
- Suitable Cable Size: Up to 1 sq mm heavy duty or 1.5 sq mm ordinary duty four core flexible cords
- Dimensions (H x L x W): 47mm x 74mm x 47mm
- Weight: 0.1 kg
Key Features
- 47 mm Diameter x 74 mm Depth
- Suitable for up to 1 sq mm heavy duty or 1.5 sq mm ordinary duty four core flexible cords
- Polycarbonate construction for durability and transparency
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure safety and compliance with electrical standards.
Applications
- Suitable for heavy duty or ordinary duty four core flexible cords up to 1.5 sq mm
- Industrial and commercial electrical connections requiring 4 pin plugs
- General electrical wiring and plug connections
Standards & Compliance
- Complies with AS/NZS 3123 – Industrial Plugs and Socket-Outlets
Environmental Benefits
- Polycarbonate material is durable and long-lasting, reducing the need for frequent replacements
- Designed for efficient electrical connections to minimize energy loss
Warranty Information
Standard manufacturer warranty applies. Please refer to Clipsal warranty terms for details.
Available Now
The Quick Connect Plug 4 Pin 10A 250V Transparent Polycarbonate is available now for immediate purchase. Ideal for industrial and commercial electrical applications requiring reliable 4 pin plug connections.
