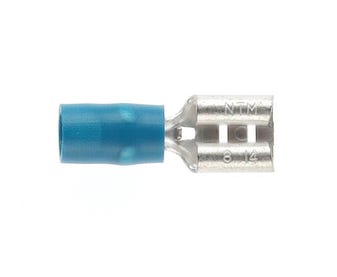

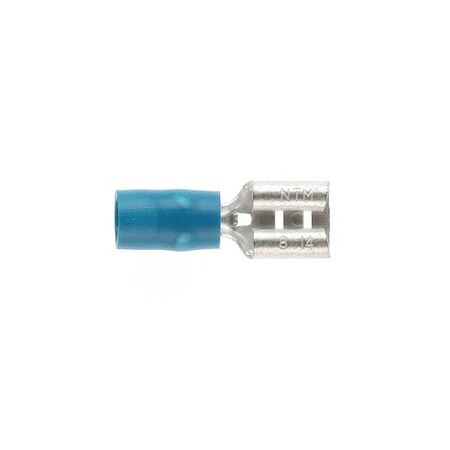

Quick Connect Terminal 6.4x0.8mm | Double Grip | PVC Insulated | 300V by Cabac
Quick connect terminal with 6.4x0.8mm size and double grip—ideal for electrical wiring connections. Built for reliability, with PVC insulation to reduce installation errors and ensure long-term integrity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Blue Quick Connect 6.4 X 0.8mm Tab Dg
Brand: Cabac
SKU: QC2-6.4DG
Alternatively Known As: Quick Connect Terminal 6.4x0.8mm Blue, Double Grip Terminal, Pre-insulated Electrical Terminal, PVC Insulated Quick Connector
Technical Specifications
- Conductive Material (Quick Connect Range): Brass 30% Zinc, 70% Copper
- Tensile Strength: 580 MPa
- Ductile Rating: Minimum 6%
- Final Metal State: Annealed
- Working Temperature: Pre-Insulate -40°C to +105°C, Brass 145°C, Tin plated 160°C
- Electroplating Material: Tin with 99.9% Tin content and 2.5 microns plating thickness
- Insulation Material: PVC (except nylon 6 or nylon 66 for FIQC)
- Breakdown Voltage: Minimum 1.5kV
- Insulation Resistance: Above 100 megohms
- Working Voltage: Up to 300V AC/DC
- Total Conductivity: 99.5% IACS
- Total Resistivity: 1.738 micro-ohm cm
- Dimensions (H x L x W): 0.8mm x 20mm x 6.4mm
- Weight: 0.1 kg
Key Features
- High quality product meeting International Standards
- Funnel entry terminals allow easy conductor entry, minimising substandard crimps
- Long term electrical integrity
- Translucent nylon in fully insulated quick connector reduces installation errors
- Voltage rating 300V
- Electric current rating 15A
- Double grip - separate crimp barrels for conductor and insulation
- PVC insulated to reduce installation errors
- Conforms to AS 3169 and AS 4437
Professional Installation Requirements
- Terminals should be crimped onto the conductor with a quality crimper designed for this specific terminal type to ensure proper installation and electrical integrity.
Applications
- Electrical wiring connections in switchgear
- Contactors and terminal blocks
- General electrical and power connectivity applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS 3169
- AS 4437
Environmental Benefits
- Durable materials reduce the need for frequent replacements
- PVC insulation designed to minimize installation errors, reducing waste
- Conforms to international standards ensuring safe and efficient electrical connections
Warranty Information
Warranty against manufacturing defects as per Cabac standard policy.
Available Now
The Cabac Blue Quick Connect 6.4 x 0.8mm Double Grip Terminal is available for immediate purchase. Ideal for electrical and power connectivity applications requiring reliable and safe terminal connections.
