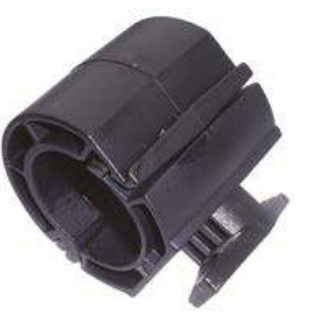

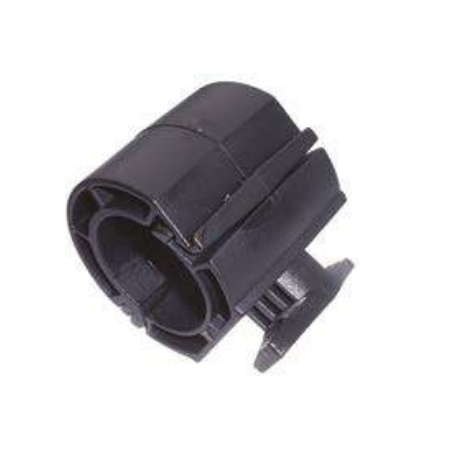

Quick Positioning Clip | Durable Nylon | Easy Installation | Noise Dampening | by Aspen Pumps

BRAND: Aspen Pumps
SKU: B6448
$3.40 List price: $4.20
+ −
30 Days Return Delivery Options
The Quick Positioning Clip is designed for efficient pipe support in HVAC and refrigeration systems, featuring durable nylon construction and excellent resistance to oil. With easy installation into standard channels and the ability to dampen noise and vibrations, it's perfect for professional installations and ensures compliance with safety standards.

Product Name/Title: Quick Positioning Clip | Durable Nylon | Easy Installation | Noise Dampening | by Aspen Pumps

Brand: Aspen Pumps

SKU: B6448

Alternatively Known As: Pipe Clip, Channel Clip, HVAC Pipe Support Clip

Technical Specifications
  • Material: Nylon
  • Maximum Temperature: 70ºC
  • Maximum Recommended Distance per Clip: 1.2 meters
  • Compatible with Fix-it Foot from Big Foot Systems
  • Size: 5/8 inch
  • Height Above Channel: 31 mm
  • Dimensions (H x L x W): 31mm x 40mm x 40mm
  • Weight: 0.1 kg
Key Features
  • Easy installation into 40mm x 40mm and 40mm x 20mm channel
  • External diameter matches diameter of pipes with 9mm insulation
  • Excellent resistance to oil
  • Helps dampen noise and vibrations
Professional Installation Requirements
  • Installation by a qualified technician or tradesperson is recommended to ensure secure and compliant pipe support.
Applications
  • Air conditioning installations
  • Refrigeration installations
  • Pipe support in HVAC systems
Standards & Compliance
  • Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Durable nylon construction reduces need for frequent replacements
  • Helps reduce noise pollution by dampening vibrations
Warranty Information

Standard manufacturer warranty applies. Please refer to Aspen Pumps for specific warranty details.

Available Now

The Aspen Pumps Quick Positioning Clip is available for immediate purchase, ideal for HVAC and refrigeration pipe support applications.
