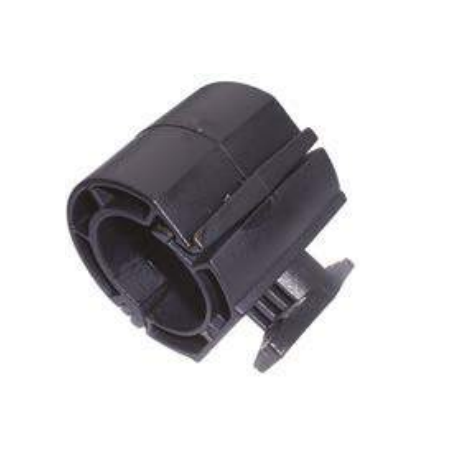

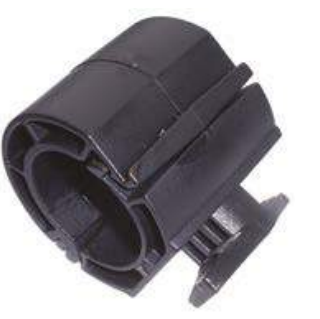

Quick Positioning Clip | Durable Nylon | Easy Installation | Noise Dampening | by Aspen Pumps
The Quick Positioning Clip is designed for efficient pipe support in HVAC and refrigeration systems, featuring durable nylon construction and easy installation into standard channels. With excellent resistance to oil and the ability to dampen noise and vibrations, this clip ensures reliable performance and system efficiency, making it ideal for professional installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Quick Positioning Clip | Durable Nylon | Easy Installation | Noise Dampening | by Aspen Pumps
Brand: Aspen Pumps
SKU: B6538
Alternatively Known As: Pipe Support Clip, Channel Clip, HVAC Pipe Clip, Quick Fit Pipe Clip
Technical Specifications
- Material: Nylon
- Maximum Temperature: 70ºC
- Maximum Recommended Distance per Clip: 1.2m
- Compatible with Fix-it Foot from Big Foot Systems
- Size: 1 5/8 inch
- Height Above Channel: 56mm
- Dimensions (H x L x W): 56mm x 40mm x 40mm
- Weight: 0.1 kg
Key Features
- Easy installation into 40mm x 40mm and 40mm x 20mm channel
- External diameter matches diameter of pipes with 9mm insulation
- Excellent resistance to oil
- Helps dampen noise and vibrations
Professional Installation Requirements
- Professional installation recommended to ensure proper support and compliance with building codes.
Applications
- Air conditioning installations
- Refrigeration installations
- Pipe support in HVAC systems
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable nylon construction reduces need for frequent replacements
- Helps maintain system efficiency by securely supporting pipes and reducing vibrations
Warranty Information
Standard manufacturer warranty applies. Please refer to Aspen Pumps for specific warranty details.
Available Now
The Aspen Pumps Quick Positioning Clip is available for immediate purchase, ideal for HVAC and refrigeration pipe support applications.
