Making Trade Life Easy!

Home/Electrical/Industrial/Switching And Control/Starting Equipment/Quick Release Gland Bracket 1100V 425A | IP55 Rated | Stainless Steel | Ausproof

Trade Discount 19%

PL QR 1100V 425A 6P Gland Bracket (180) 50-C 45-50-G (241.1)

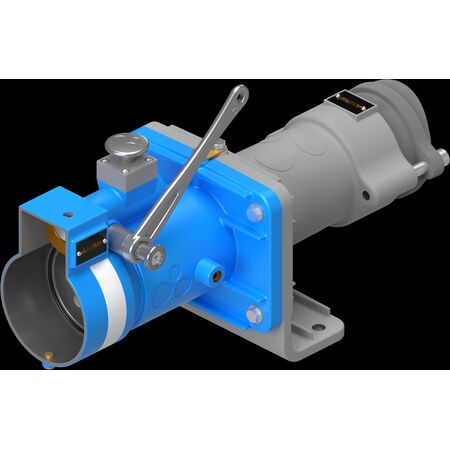

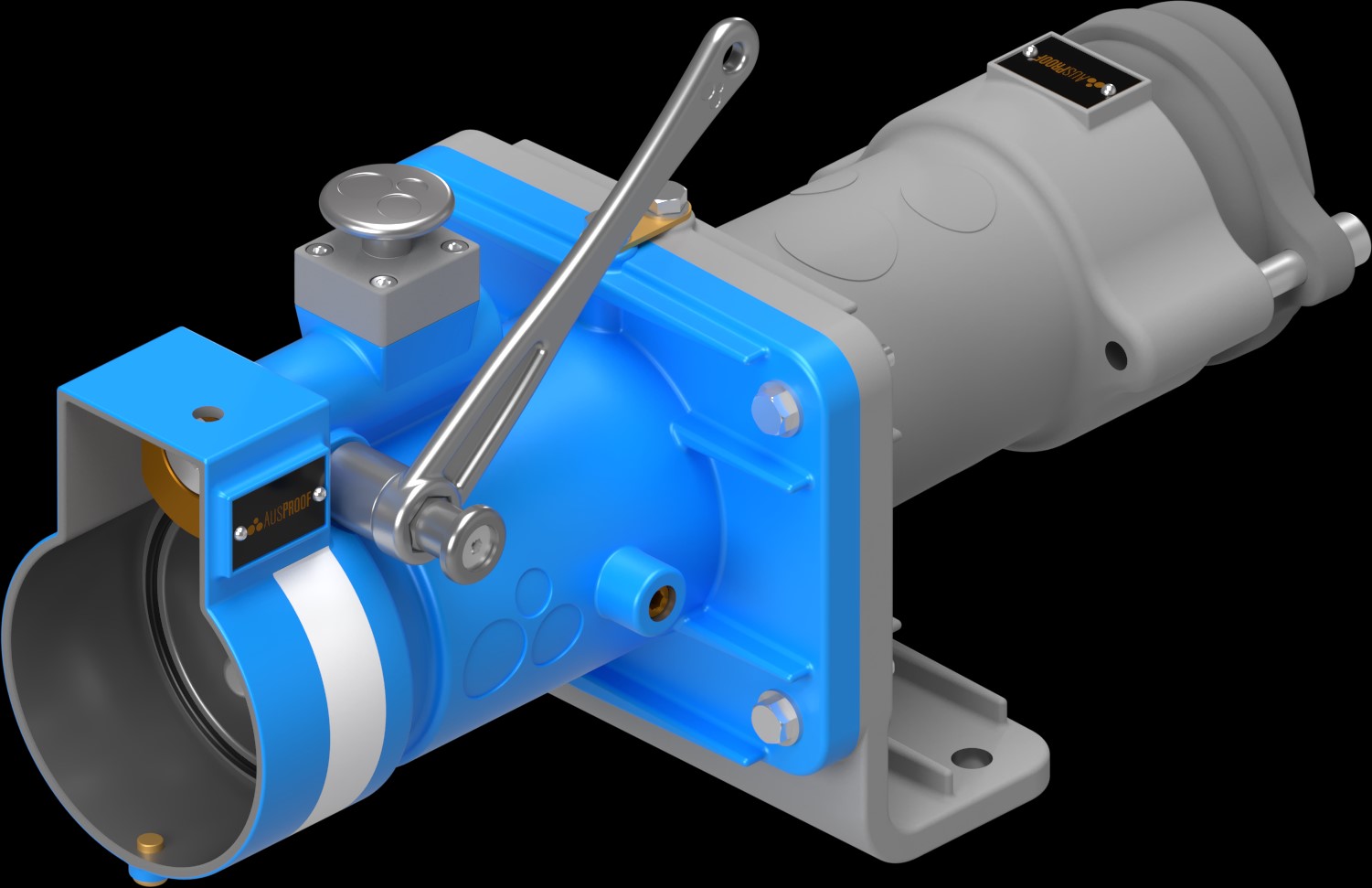

Quick Release Gland Bracket 1100V 425A | IP55 Rated | Stainless Steel | Ausproof

BRAND: Ausproof

SKU: RS2581QR

$3,866.50 List price: $4,802.20

+ −

30 Days Return Delivery Options

Quick release gland bracket with 1100V operating voltage and 425A current rating—ideal for mining and hazardous environments. Built for durability with stainless steel construction, it features IP55 ingress protection and easy termination for efficient installation.

Description

Product Name/Title: PL QR 1100V 425A 6P Gland Bracket (180) 50-C 45-50-G (241.1)

Brand: Ausproof

SKU: RS2581QR

Alternatively Known As: PL Range Quick Release Gland Bracket, Ex-rated Plug and Receptacle, Mining Electrical Connector

Technical Specifications

Operating Voltage: 660V to 3300V
Current Rating: 300A to 425A
Material: Stainless Steel
Ingress Protection: IP55
Through Fault Current (Phase): 2 tests of 25.0kA for 0.2 seconds
Through Fault Current (Earth): 2 tests of 8.0kA for 0.2 seconds
AC HV Withstand (Phase): 8.6kV for one minute
AC HV Withstand (Pilot): 1.0kV for one minute
Temperature Rise: Rated for 300A and 425A
Weight: 10.7 kg (Receptacle), 9.0 kg (Plug)
Dimensions (H x L x W): 50mm x 241mm x 180mm
Weight: 10.7 kg

Key Features

Quick Release
Single piece contacts to prevent hot joints
Easy termination
Easy flameproof repair
Full solid earth connectivity throughout product
Full phase to phase segregation with earth
Lightest Ex product on the market
Silicone Protection Cover
Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles

Professional Installation Requirements

Installation should be performed by qualified electricians trained in hazardous area electrical equipment to ensure compliance and safety.

Applications

Mining
Tunnelling
Commercial applications
Group 1 hazardous environments

Standards & Compliance

Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres

Environmental Benefits

Durable stainless steel construction reduces need for frequent replacements.
Easy on-site repair reduces waste and downtime.

Warranty Information

Warranty details available upon request from Ausproof; typically includes coverage against manufacturing defects.

Available Now

The Ausproof PL QR 1100V 425A 6P Gland Bracket is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial applications.
