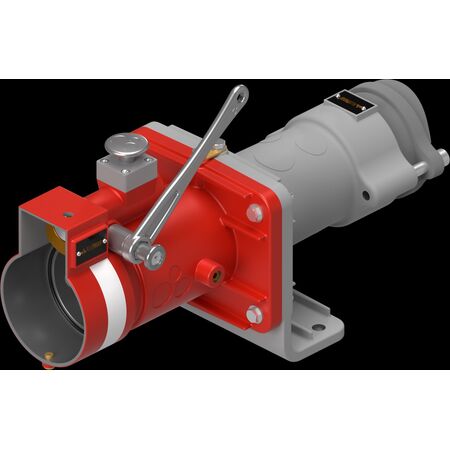

Quick Release Gland Bracket 3300V 425A 4P | IP55 Rated | Stainless Steel | Ausproof

BRAND: Ausproof

SKU: RS2623QR

$3,517.30 List price: $4,368.40

+ −

30 Days Return Delivery Options

The Quick Release Gland Bracket offers a 3300V operating voltage and 425A current rating—ideal for mining and hazardous electrical installations. Built for safety with IP55 ingress protection and durable stainless steel construction, it ensures reliable performance in challenging environments.

Description

Product Name/Title: PL QR 3300V 425A 4P Gland Bracket (0) 50-C 50-55-G (241.3)

Brand: Ausproof

SKU: RS2623QR

Alternatively Known As: PL Range Quick Release Gland Bracket, Flameproof Receptacle 425A, Ex-certified Electrical Connector

Technical Specifications

Operating Voltage: 660V to 3300V
Current Rating: 300A to 425A
Material: Stainless Steel
Ingress Protection: IP55
Through Fault Current (Phase): 2 tests at 25.0kA for 0.2 seconds
Through Fault Current (Earth): 2 tests at 8.0kA for 0.2 seconds
AC High Voltage Withstand (Phase): 8.6kV for one minute
AC High Voltage Withstand (Pilot): 1.0kV for one minute
Temperature Rise: Rated for 300A and 425A
Weight: 10.7 kg (Receptacle)
Dimensions (H x L x W): 200mm x 400mm x 300mm
Weight: 10.7 kg

Key Features

Quick Release mechanism for easy operation
Single piece contacts to prevent hot joints
Easy termination and flameproof repair
Full solid earth connectivity throughout the product
Full phase to phase segregation with earth
Lightest Ex product on the market
Silicone protection cover
Stainless steel hanging plate for Back-to-Back (B2B) receptacles

Professional Installation Requirements

Installation must be performed by a qualified electrician experienced with Ex-certified equipment and hazardous area installations.

Applications

Mining and tunnelling operations
Commercial electrical installations
Group 1 hazardous environments requiring flameproof equipment

Standards & Compliance

Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres

Environmental Benefits

Durable stainless steel construction reduces need for frequent replacements
Flameproof design enhances safety, reducing risk of environmental hazards
Easy on-site repair reduces waste and downtime

Warranty Information

Standard manufacturer warranty applies. Please contact Ausproof for detailed warranty terms.

Available Now

The Ausproof PL QR 3300V 425A 4P Gland Bracket is available for immediate purchase, ideal for mining, tunnelling, and hazardous commercial electrical applications.
