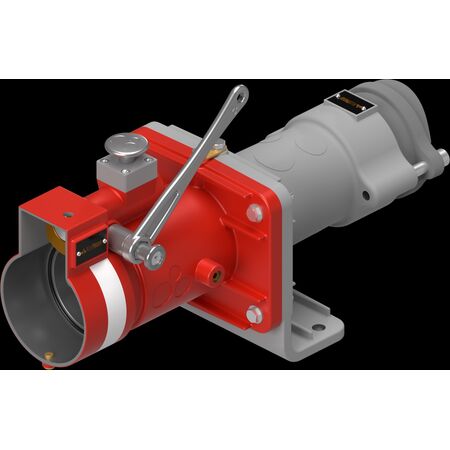

Quick Release Gland Bracket 3300V 425A | IP55 Rated | Stainless Steel | Ausproof

BRAND: Ausproof

SKU: RS2647QR

$3,839.00 List price: $4,768.00

+ −

30 Days Return Delivery Options

The Quick Release Gland Bracket operates at 3300V with a 425A current rating, making it ideal for mining and tunnelling operations. Built for hazardous environments, it features a durable stainless steel construction and quick release mechanism for easy operation.

Description

Product Name/Title: PL QR 3300V 425A 6P Gland Bracket (0) 150-C 75-80-G (245.3)

Brand: Ausproof

SKU: RS2647QR

Alternatively Known As: PL Range Gland Bracket, Ex-certified Receptacle, Quick Release Gland Bracket, Mining Electrical Connector

Technical Specifications

Operating Voltage: 660V to 3300V
Current Rating: 300A to 425A
Material: Stainless Steel
Ingress Protection: IP55
Through Fault Current (Phase): 2 tests of 25.0kA for 0.2 seconds
Through Fault Current (Earth): 2 tests of 8.0kA for 0.2 seconds
AC High Voltage Withstand (Phase): 8.6kV for one minute
AC High Voltage Withstand (Pilot): 1.0kV for one minute
Temperature Rise: Rated for 300A and 425A
Compliance: AS/NZS 1299, IEC 60079-0, IEC 60079-1
Dimensions (H x L x W): 80mm x 150mm x 245mm
Weight: 10.7 kg

Key Features

Quick Release mechanism for easy operation
Single piece contacts to prevent hot joints
Easy termination and flameproof repair
Full solid earth connectivity throughout the product
Full phase to phase segregation with earth
Lightest Ex product on the market
Silicone protection cover
Stainless steel hanging plate for Back-to-Back (B2B) receptacles

Professional Installation Requirements

Installation should be performed by a qualified electrician experienced with Ex-certified equipment and hazardous area installations.

Applications

Mining and tunnelling operations
Commercial electrical installations
Group 1 hazardous environments requiring Ex-certified equipment

Standards & Compliance

Complies with AS/NZS 1299 for electrical equipment in hazardous areas

Environmental Benefits

Durable stainless steel construction reduces need for frequent replacements
Easy on-site repair reduces waste and downtime
Energy efficient design minimizes electrical losses

Warranty Information

Standard manufacturer warranty applies. Please contact Ausproof for detailed warranty terms.

Available Now

The Ausproof PL QR 3300V 425A 6P Gland Bracket is available for immediate purchase, ideal for mining, tunnelling, and commercial hazardous environment applications.
