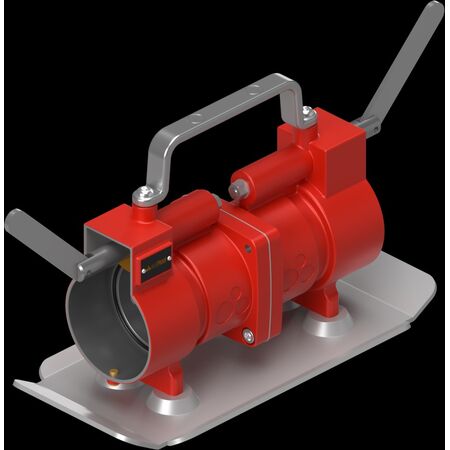

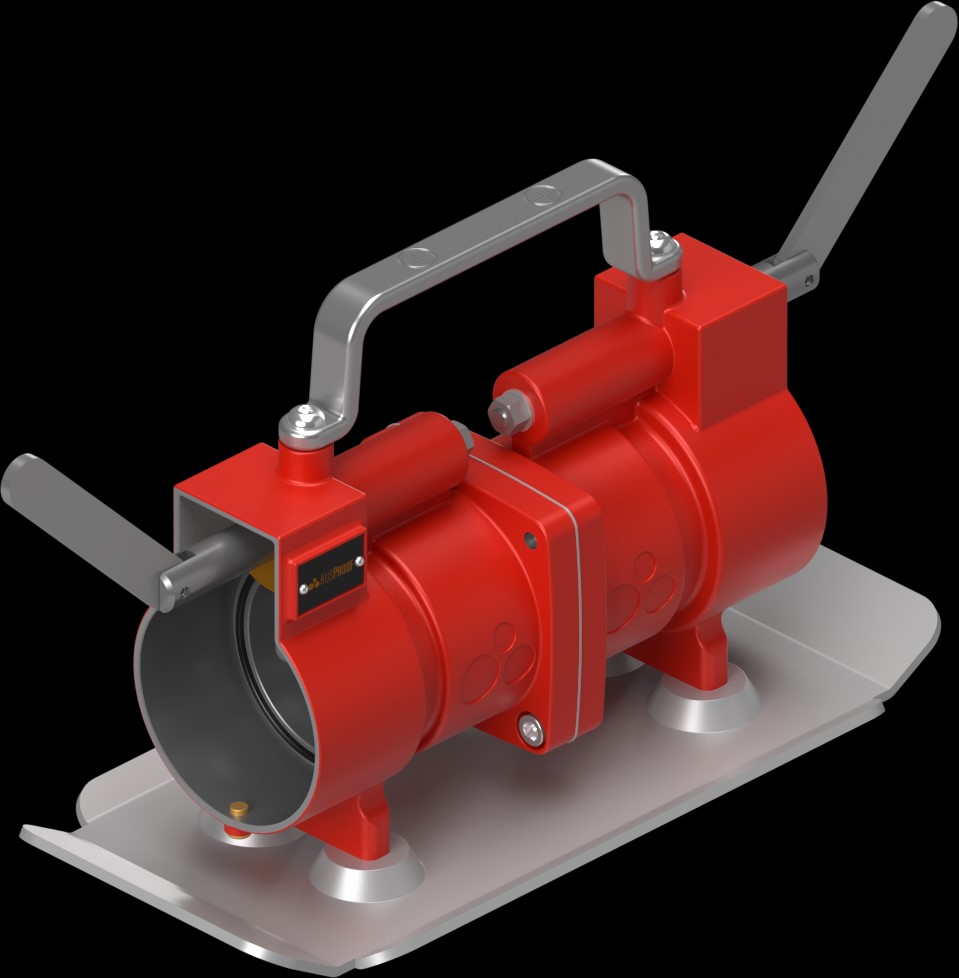

Quick Release Plug 3300V 300A 4P | IP55 Ingress Protection | Stainless Steel | Ausproof

BRAND: Ausproof

SKU: RS2468QR

$3,737.30 List price: $4,641.70

+ −

30 Days Return Delivery Options

The Quick Release Plug 3300V 300A 4P is designed for hazardous environments, featuring IP55 ingress protection and durable stainless steel construction. Ideal for mining and tunnelling applications, it ensures safety with easy termination and flameproof repair capabilities.

Description

Product Name/Title: PL B2B QR 3300V 300A 4P Full Assembly

Brand: Ausproof

SKU: RS2468QR

Alternatively Known As: PL Range Quick Release Plug, Ex-certified Mining Plug, Flameproof Electrical Connector, 4-Pin Industrial Plug

Technical Specifications

Operating Voltage: 660V to 3300V
Current Rating: 300A to 425A
Material: Stainless Steel
Ingress Protection: IP55
Through Fault Current (Phase): 2 tests of 25.0kA for 0.2 seconds
Through Fault Current (Earth): 2 tests of 8.0kA for 0.2 seconds
AC HV Withstand (Phase): 8.6kV for one minute
AC HV Withstand (Pilot): 1.0kV for one minute
Temperature Rise: Rated for 300A and 425A
Weight: Plug 9.0 kg, Receptacle 10.7 kg
Dimensions (H x L x W): 200mm x 400mm x 300mm
Weight: 9 kg

Key Features

Quick Release
Single piece contacts to prevent hot joints
Easy termination
Easy flameproof repair
Full solid earth connectivity throughout product
Full phase to phase segregation with earth
Lightest Ex product on the market
Silicone Protection Cover
Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles

Professional Installation Requirements

Professional installation by qualified personnel trained in hazardous area electrical equipment is required to ensure safety and compliance.

Applications

Mining
Tunnelling
Commercial applications
Group 1 hazardous environments

Standards & Compliance

Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres

Environmental Benefits

Durable stainless steel construction reduces waste and extends product life.
Easy flameproof repair reduces the need for full replacements, minimizing material waste.

Warranty Information

Warranty details available upon request from Ausproof.

Available Now

The Ausproof PL B2B QR 3300V 300A 4P Full Assembly is available now for immediate purchase. Ideal for mining, tunnelling, and commercial hazardous environment applications.
