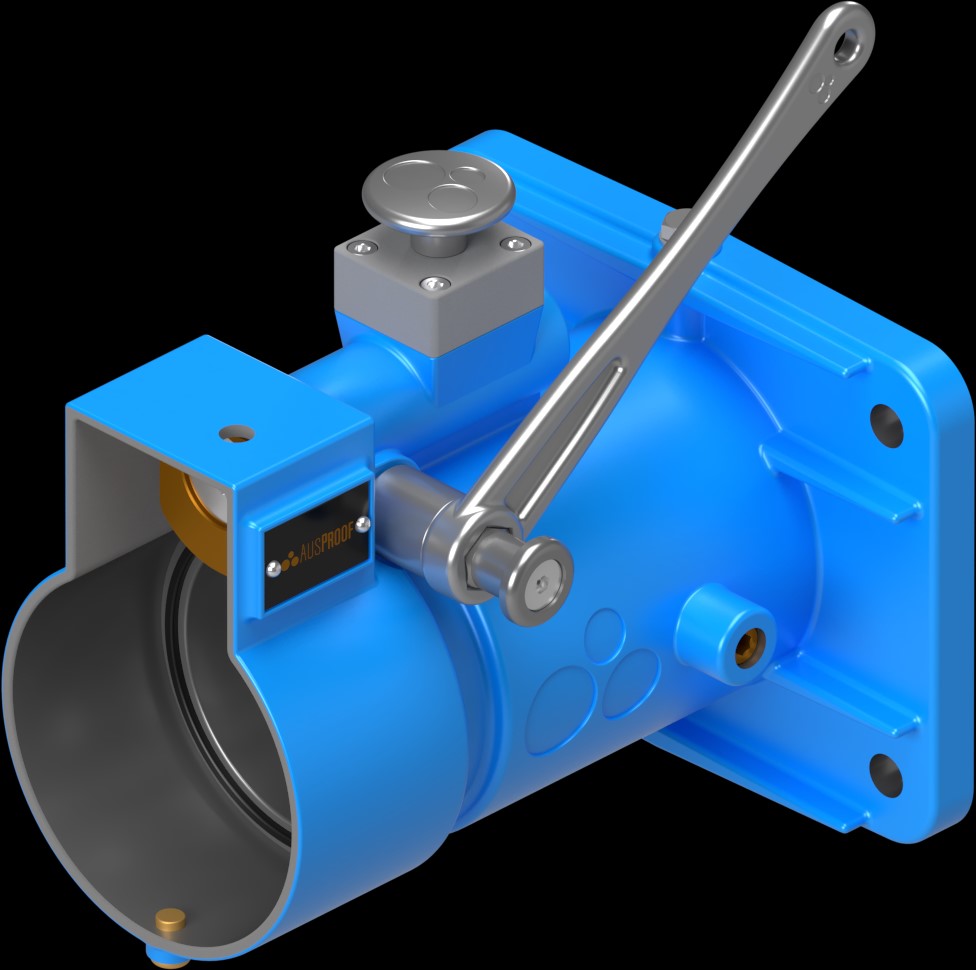

Quick Release Receptacle 300A 1100V | IP55 Rated | Stainless Steel | Ausproof
The Quick Release Receptacle offers a robust 300A current rating and operates at 1100V, making it ideal for mining and commercial applications. Built for safety and compliance in hazardous environments, it features durable stainless steel construction and IP55 ingress protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PL QR 1100V 300A 6P Receptacle (90) 16-C
Brand: Ausproof
SKU: RS1475QR
Alternatively Known As: PL Range Receptacle, Quick Release Receptacle, Ex-certified Receptacle, Mining Receptacle, Flameproof Receptacle
Technical Specifications
- Operating Voltage: 660V to 3300V
- Current Rating: 300A to 425A
- Material: Stainless Steel
- Ingress Protection: IP55
- Through Fault Current (Phase): 2 tests of 25.0kA for 0.2 seconds
- Through Fault Current (Earth): 2 tests of 8.0kA for 0.2 seconds
- AC HV Withstand (Phase): 8.6kV for one minute
- AC HV Withstand (Pilot): 1.0kV for one minute
- Temperature Rise: Rated for 300A and 425A
- Plug Weight: 9.0 kg
- Receptacle Weight: 10.7 kg
- Dimensions (H x L x W): 300mm x 150mm x 200mm
- Weight: 10.7 kg
Key Features
- Quick Release
- Single piece contacts to prevent hot joints
- Easy termination
- Easy flameproof repair
- Full solid earth connectivity throughout product
- Full phase to phase segregation with earth
- Lightest Ex product on the market
- Silicone Protection Cover
- Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles
Professional Installation Requirements
- Professional installation by qualified personnel trained in hazardous area electrical equipment is required to ensure safety and compliance.
Applications
- Mining
- Tunnelling
- Commercial applications
- Group 1 hazardous environments
Standards & Compliance
- Complies with AS/NZS 1299 – Electrical Equipment in Hazardous Areas
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements.
- Easy flameproof repair reduces waste by allowing on-site body casting replacement.
Warranty Information
Warranty details available upon request from Ausproof, typically covering manufacturing defects.
Available Now
The Ausproof PL QR 1100V 300A 6P Receptacle is available now for immediate purchase. Ideal for mining, tunnelling, and commercial hazardous environment applications.
