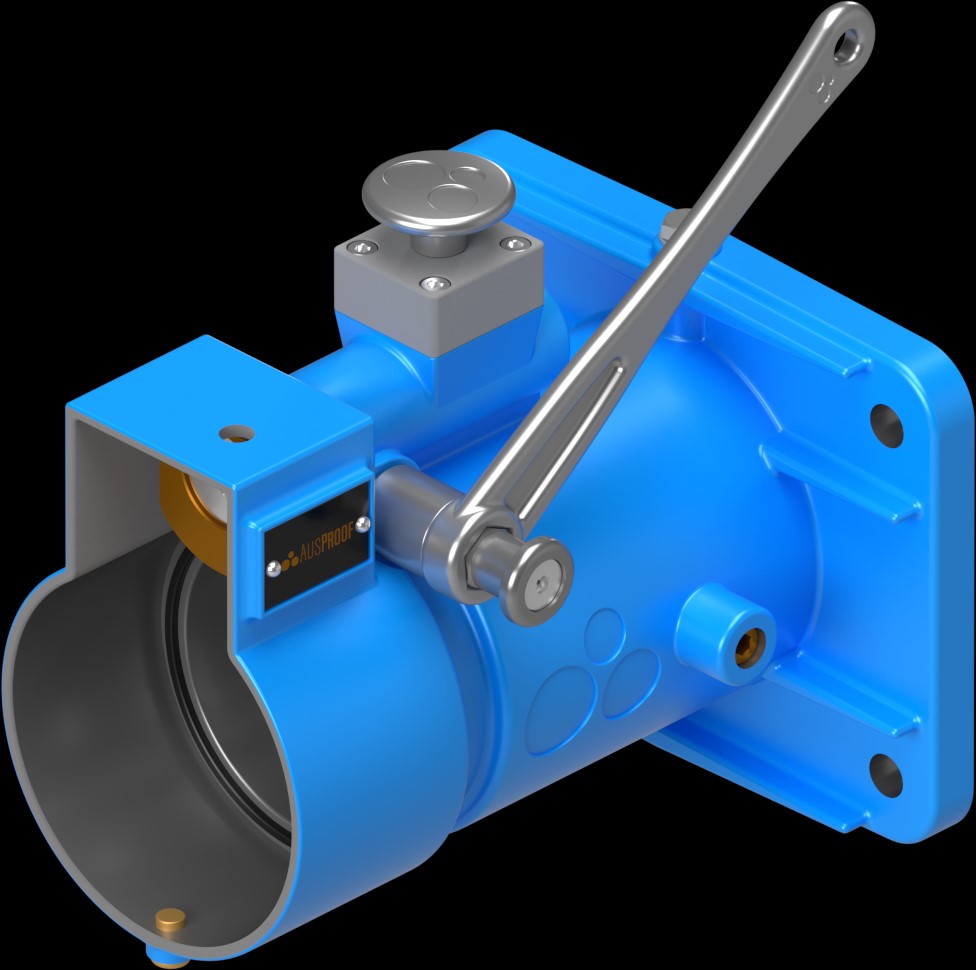

Quick Release Receptacle 300A | 660V to 3300V | IP55 Rated | Stainless Steel by Ausproof

BRAND: Ausproof

SKU: RS1479QR

$2,293.50 List price: $2,848.50

+ −

30 Days Return Delivery Options

The Quick Release Receptacle with a 300A current rating and voltage range of 660V to 3300V is ideal for mining and tunnelling applications. Built for hazardous environments, it features durable stainless steel construction and easy flameproof repair, ensuring safety and longevity.

Description

Product Name/Title: PL QR 1100V 300A 6P Receptacle (90) 70-C

Brand: Ausproof

SKU: RS1479QR

Alternatively Known As: PL Range Receptacle, Quick Release Receptacle, Ex-certified Receptacle, Mining Electrical Receptacle

Technical Specifications

Voltage Range: 660V to 3300V
Current Rating: 300A to 425A
Material: Stainless Steel
Ingress Protection: IP55
Through Fault Current (Phase): 2 Tests of 25.0kA for 0.2 seconds
Through Fault Current (Earth): 2 Tests of 8.0kA for 0.2 seconds
AC HV Withstand (Phase): 8.6kV for one minute
AC HV Withstand (Pilot): 1.0kV for one minute
Temperature Rise: Rated for 300A and 425A
Plug Weight: 9.0KG
Dimensions (H x L x W): 300mm x 150mm x 200mm
Weight: 10.7 kg

Key Features

Quick Release
Single piece contacts to prevent hot joints
Easy termination
Easy flameproof repair
Full solid earth connectivity throughout product
Full phase to phase segregation with earth
Lightest Ex product on the market
Silicone Protection Cover
Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles

Professional Installation Requirements

Professional installation by qualified electricians trained in hazardous area equipment is required to ensure safety and compliance.

Applications

Mining
Tunnelling
Commercial applications
Group 1 hazardous environments

Standards & Compliance

Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres

Environmental Benefits

Durable stainless steel construction reduces need for frequent replacements.
Easy flameproof repair reduces waste and extends product life.

Warranty Information

Warranty details available upon request from Ausproof, typically covering manufacturing defects.

Available Now

The Ausproof PL QR 1100V 300A 6P Receptacle is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial applications.
