Making Trade Life Easy!

Home/Electrical/Industrial/Industrial Outlets/Quick Release Receptacle 3300V 300A | IP55 Rated | Stainless Steel | Ausproof

Trade Discount 19%

PL QR 3300V 300A 6P Receptacle (270) 150-C

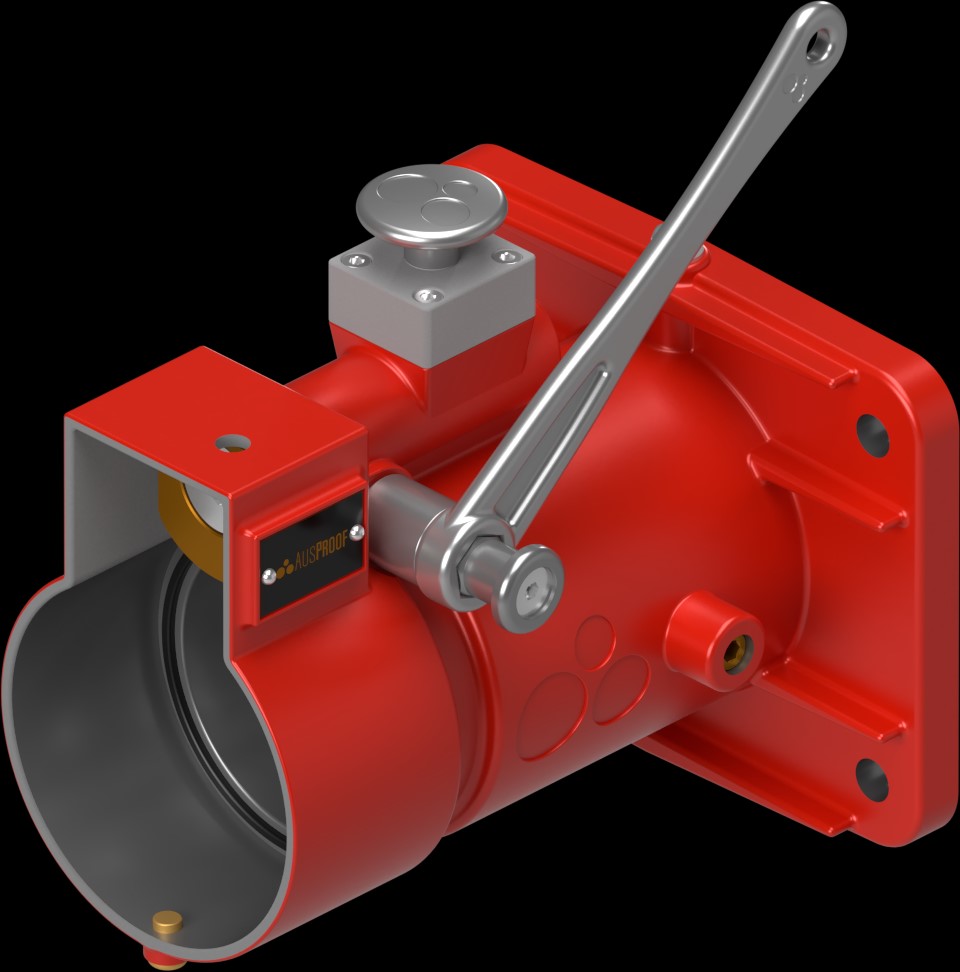

Quick Release Receptacle 3300V 300A | IP55 Rated | Stainless Steel | Ausproof

BRAND: Ausproof

SKU: RS1554QR

$2,293.50 List price: $2,848.50

+ −

30 Days Return Delivery Options

Quick release receptacle with 3300V operating voltage and 300A current rating—ideal for mining and hazardous environments. Built for safety and compliance, featuring durable stainless steel construction and IP55 ingress protection.

Description

Product Name/Title: PL QR 3300V 300A 6P Receptacle (270) 150-C

Brand: Ausproof

SKU: RS1554QR

Alternatively Known As: PL Range Receptacle, Quick Release Receptacle, Ex-certified 300A Receptacle, Mining Electrical Receptacle

Technical Specifications

Operating Voltage: 660 to 3300V
Current Rating: 300 to 425A
Material: Stainless Steel
Ingress Protection: IP55
Through Fault Current (Phase): 2 tests of 25.0kA for 0.2 seconds
Through Fault Current (Earth): 2 tests of 8.0kA for 0.2 seconds
AC HV Withstand (Phase): 8.6kV for one minute
AC HV Withstand (Pilot): 1.0kV for one minute
Temperature Rise: Rated for 300A and 425A
Plug Weight: 9.0 kg
Dimensions (H x L x W): 300mm x 150mm x 200mm
Weight: 10.7 kg

Key Features

Quick Release
Single piece contacts to prevent hot joints
Easy termination
Easy flameproof repair
Full solid earth connectivity throughout product
Full phase to phase segregation with earth
Lightest Ex product on the market
Silicone Protection Cover
Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles

Professional Installation Requirements

Professional installation by qualified electricians trained in hazardous area equipment is required to ensure safety and compliance.

Applications

Mining
Tunnelling
Commercial applications
Group 1 hazardous environments

Standards & Compliance

Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres

Environmental Benefits

Durable stainless steel construction reduces need for frequent replacements.
Easy flameproof repair reduces waste and downtime.

Warranty Information

Warranty details available upon request from Ausproof; typically includes coverage against manufacturing defects.

Available Now

The Ausproof PL QR 3300V 300A 6P Receptacle is available now for immediate purchase. Ideal for mining, tunnelling, and commercial hazardous environment applications.
