Quick Release Receptacle 425A | 660V to 3300V | IP55 Rated | Stainless Steel by Ausproof
The Quick Release Receptacle 425A offers a voltage range of 660V to 3300V and IP55 ingress protection—ideal for mining and hazardous environments. Built for safety and durability, it features quick release functionality and stainless steel construction for easy maintenance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

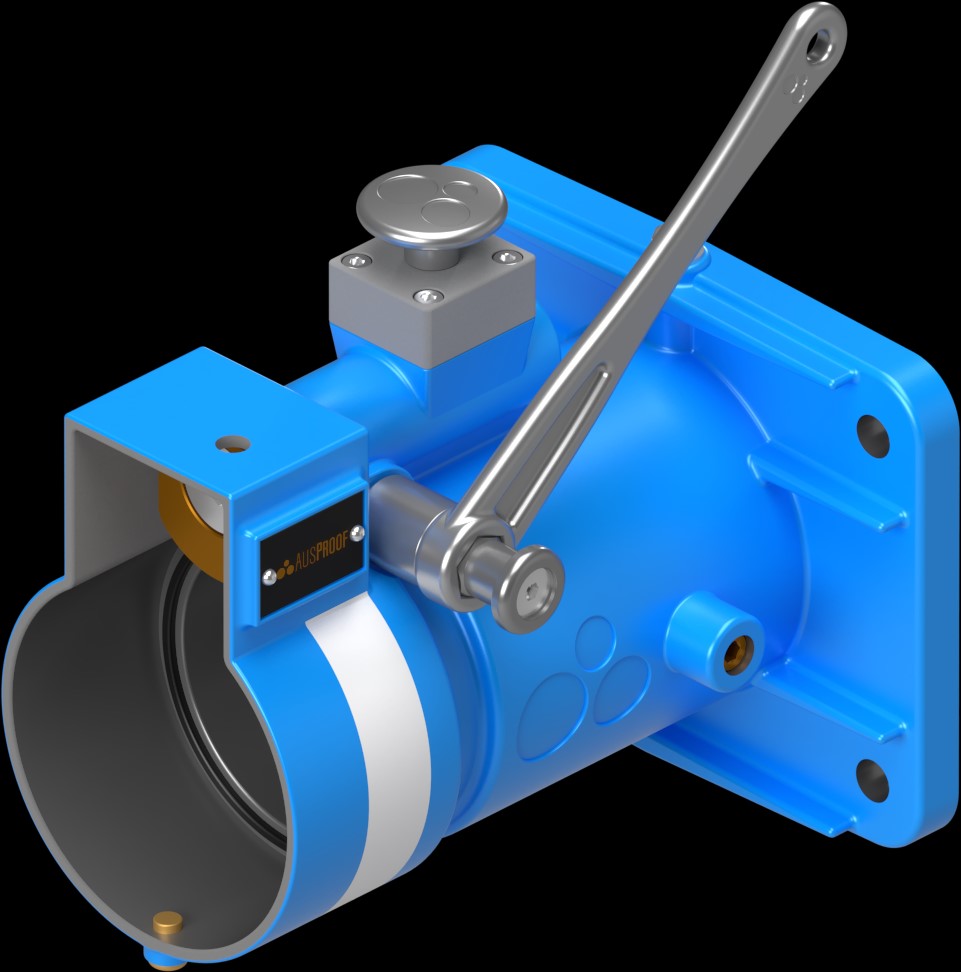

Product Name/Title: PL QR 1100V 425A 6P RECEP Blue wW Body Kit
Brand: Ausproof
SKU: RS1909QR
Alternatively Known As: PL Range Quick Release Receptacle, Ex-rated 425A Receptacle, Mining Grade Electrical Receptacle
Technical Specifications
- Voltage Range: 660V to 3300V
- Current Rating: 300A to 425A
- Material: Stainless Steel
- Ingress Protection: IP55
- Through Fault Current (Phase): 2 tests of 25.0kA for 0.2 seconds
- Through Fault Current (Earth): 2 tests of 8.0kA for 0.2 seconds
- AC High Voltage Withstand (Phase): 8.6kV for one minute
- AC High Voltage Withstand (Pilot): 1.0kV for one minute
- Temperature Rise: Rated for 300A and 425A
- Plug Weight: 9.0 kg
- Receptacle Weight: 10.7 kg
- Dimensions (H x L x W): 300mm x 150mm x 200mm
- Weight: 10.7 kg
Key Features
- Quick Release
- Single piece contacts to prevent hot joints
- Easy termination
- Easy flameproof repair
- Full solid earth connectivity throughout product
- Full phase to phase segregation with earth
- Lightest Ex product on the market
- Silicone Protection Cover
- Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles
Professional Installation Requirements
- Installation should be performed by qualified electricians trained in hazardous area electrical equipment to ensure compliance and safety.
Applications
- Mining
- Tunnelling
- Commercial applications
- Group 1 hazardous environments
Standards & Compliance
- Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements.
- Easy on-site repair reduces waste and resource consumption.
Warranty Information
Warranty details available upon request from Ausproof, typically covering manufacturing defects.
Available Now
The Ausproof PL QR 1100V 425A 6P Receptacle Blue with Body Kit is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial applications.
