Quiet Exhaust Fan | 50W Power | 805 m3/hr Airflow | Compact Design by Allvent

BRAND: Allvent
SKU: ALV17164
$661.90 List price: $801.20
+ −
30 Days Return Delivery Options

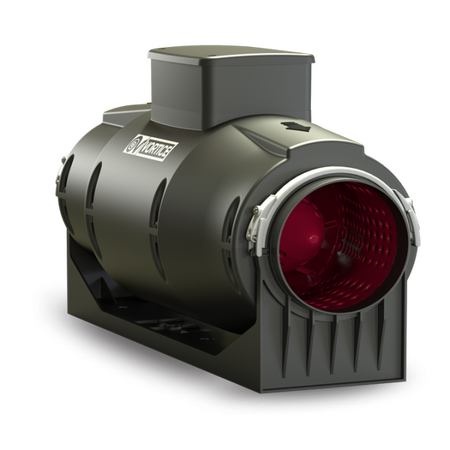

The Vortice Lineo QUIET Series is a quiet exhaust fan with 50W power and 805 m3/hr airflow—ideal for residential ventilation in small spaces. Built for bathrooms and kitchens, it features an energy-efficient motor and minimal noise emissions for optimal comfort.

Product Name/Title: Quiet Exhaust Fan | 50W Power | 805 m3/hr Airflow | Compact Design by Allvent

Brand: Allvent

SKU: ALV17164

Alternatively Known As: Vortice Lineo Quiet Fan, Residential Ventilation Fan, Quiet Exhaust Fan

Technical Specifications
  • Voltage: 220–240V, 50/60 Hz
  • Power: 50W
  • Current: 0.34A
  • Speed: Low, 1880 RPM
  • Maximum Airflow: 805 m3/hr (223.6 l/s)
  • Maximum Pressure: 202 Pa
  • Maximum Operating Temperature: 50°C
  • Motor Type: AC motor with ball bearings
  • Impeller Type: Mixed flow axial-centrifugal
  • Dimensions (H x L x W): 200mm x 200mm x 200mm
  • Weight: 8.6 kg
Key Features
  • Designed to fit into small spaces
  • Easily removed to facilitate maintenance
  • Vortice AC motor with shaft turning in ball bearings
  • Coupled to mixed flow axial-centrifugal impeller
  • Optimised air flow for maximised performance and increased efficiency
  • Minimal noise emissions
  • Ball bearing motors rated for at least 30,000 hours of operation without mechanical malfunction
  • Timer models available
Professional Installation Requirements
  • Professional installation by a qualified technician or electrician is recommended to ensure optimal performance and compliance with safety standards.
Applications
  • Residential ventilation for small spaces
  • Suitable for bathrooms, kitchens, and other residential areas requiring air extraction
Standards & Compliance
  • Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Energy-efficient motor reduces power consumption
  • Optimised airflow improves ventilation efficiency, reducing energy waste
  • Long motor life reduces replacement frequency and waste
Warranty Information

Standard manufacturer warranty applies; please refer to Allvent for specific warranty details.

Available Now

The Vortice Lineo QUIET Series ventilation fan is available now for immediate purchase. Ideal for residential applications requiring quiet and efficient ventilation.

Exhaust Fan Airflow Calculator






This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
