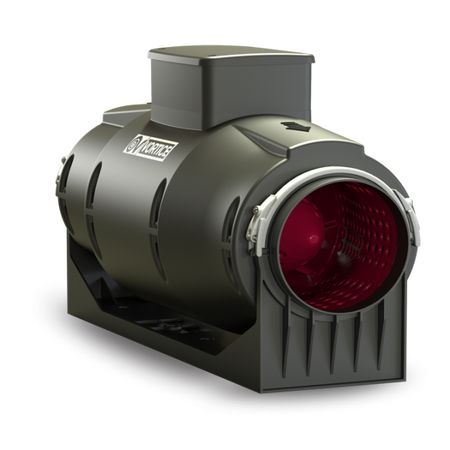

Quiet Extractor Fan | 95W Power | 960 m3/hr Airflow | Compact Design by Allvent

BRAND: Allvent
SKU: ALV17165
$1,341.40 List price: $1,623.60
+ −
30 Days Return Delivery Options
The Vortice Lineo QUIET Series is a quiet extractor fan with 95W power and 960 m3/hr airflow—ideal for residential ventilation in small spaces. Built for bathrooms and kitchens, it features an energy-efficient motor and minimal noise emissions for optimal comfort.

Product Name/Title: Quiet Extractor Fan | 95W Power | 960 m3/hr Airflow | Compact Design by Allvent

Brand: Allvent

SKU: ALV17165

Alternatively Known As: Vortice Lineo Quiet Fan, Residential Ventilation Fan, Quiet Extractor Fan

Technical Specifications
  • Voltage: 220–240V, 50/60 Hz
  • Power: 95W
  • Current: 0.42A
  • Speed: Low (1640 RPM)
  • Maximum Airflow: 960 m3/hr (266.7 l/s)
  • Maximum Pressure: 198.1 Pa
  • Maximum Operating Temperature: 50°C
  • Motor Type: AC motor with ball bearings
  • Expected Motor Life: At least 30,000 hours
  • Dimensions (H x L x W): 250mm x 250mm x 250mm
  • Weight: 13.4 kg
Key Features
  • Designed to fit into small spaces
  • Easily removed to facilitate maintenance
  • Vortice AC motor with shaft turning in ball bearings
  • Coupled to mixed flow axial-centrifugal impeller
  • Optimised air flow for maximised performance and increased efficiency
  • Minimal noise emissions
  • Ball bearing motors rated for at least 30,000 hours of operation without mechanical malfunction
  • Timer models available
Professional Installation Requirements
  • Professional installation by a qualified electrician or ventilation specialist is recommended to ensure optimal performance and compliance with safety standards.
Applications
  • Residential ventilation for small spaces
  • Suitable for bathrooms, kitchens, and other residential areas requiring efficient air extraction
Standards & Compliance
  • Complies with AS/NZS 60335 for electrical safety of household and similar electrical appliances
Environmental Benefits
  • Energy-efficient motor reduces power consumption
  • Optimised airflow design improves ventilation efficiency, reducing energy waste
Warranty Information

Standard manufacturer warranty applies; please refer to Allvent for specific warranty details.

Available Now

The Vortice Lineo QUIET Series ventilation fan is available now for immediate purchase. Ideal for residential applications requiring quiet and efficient ventilation.

Exhaust Fan Airflow Calculator






This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
