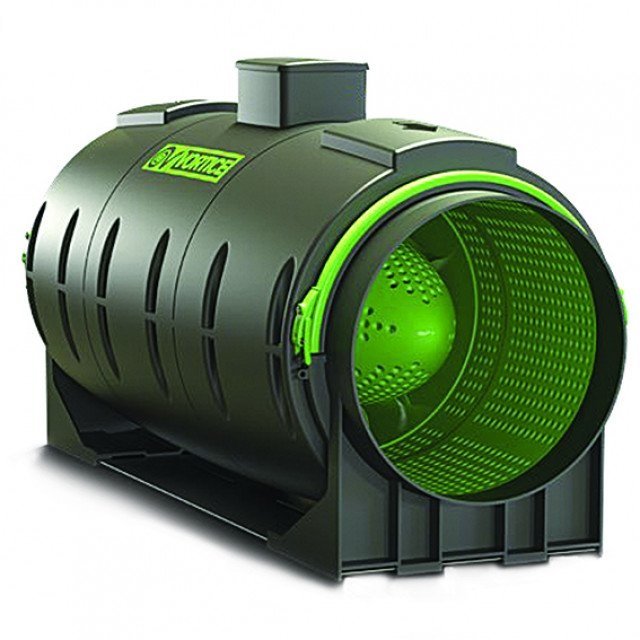

Quiet Ventilation Fan | 240V EC Brushless Motor | 250 m³/h Airflow | 45.1 dB Noise Level by Allvent

BRAND: Allvent
SKU: ALV17172
$760.80 List price: $920.80
Free pick up (over 25 kg or over 1 meter)
For delivery quote message
30 Days Return Delivery Options
The Quiet Ventilation Fan features a 240V EC brushless motor and delivers a maximum airflow of 250 m³/h—ideal for residential spaces needing quiet operation. Designed for easy maintenance and energy efficiency, it ensures optimal performance with minimal noise emissions.

Product Name/Title: Quiet Ventilation Fan | 240V EC Brushless Motor | 250 m³/h Airflow | 45.1 dB Noise Level by Allvent

Brand: Allvent

SKU: ALV17172

Alternatively Known As: Vortice Lineo Quiet ES Fan, Allvent Lineo QUIET ES Ventilation, Residential Quiet Ventilation Fan

Technical Specifications
  • Voltage: 240V, 50Hz
  • Speed: 4V
  • Motor Power: 7.7W
  • Current: 0.11 Amps
  • RPM: 1015
  • Maximum Airflow: 250 m³/h
  • Maximum Pressure: 69.4 Pa
  • Noise Level: 45.1 dB(A) at 3 meters
  • Maximum Operating Temperature: 13.7°C
  • Motor Type: EC brushless with thermal overload cutout
  • Bearing Type: Ball bearings
  • Dimensions (H x L x W): 150mm x 150mm x 150mm
  • Weight: 60 kg
Key Features
  • Designed to fit into small spaces
  • Easily removed to facilitate maintenance
  • Vortice EC brushless motor with thermal overload cutout
  • Shaft turning in ball bearings for durability
  • Coupled to mixed flow axial-centrifugal impeller
  • Optimised air flow for maximised performance and increased efficiency
  • Minimal noise emissions
  • Ball bearing motors rated for at least 30,000 hours operation without mechanical malfunction
Professional Installation Requirements
  • Professional installation by a qualified technician or electrician is recommended to ensure optimal performance and compliance with safety standards.
Applications
  • Residential ventilation for small spaces
  • Ventilation in homes requiring quiet operation
  • Maintenance-friendly ventilation systems
Standards & Compliance
  • Complies with AS/NZS 60335 for electrical safety of household and similar electrical appliances
Environmental Benefits
  • Energy-efficient EC brushless motor reduces power consumption
  • Optimised airflow improves ventilation efficiency
  • Long motor life reduces waste and replacement frequency
Warranty Information

Warranty details available upon purchase; typically includes coverage for motor and manufacturing defects.

Available Now

The Vortice Lineo QUIET ES Series is available now for immediate purchase. Ideal for residential ventilation applications requiring quiet, efficient airflow in compact spaces.

Exhaust Fan Airflow Calculator






This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
