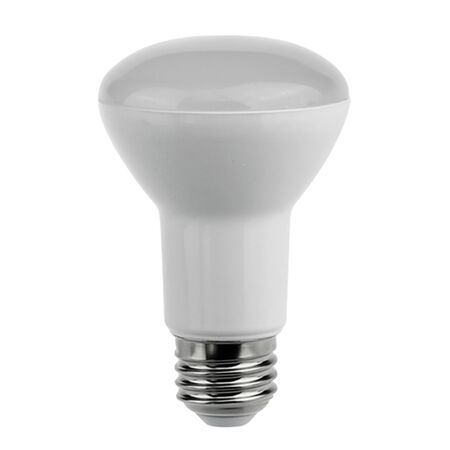

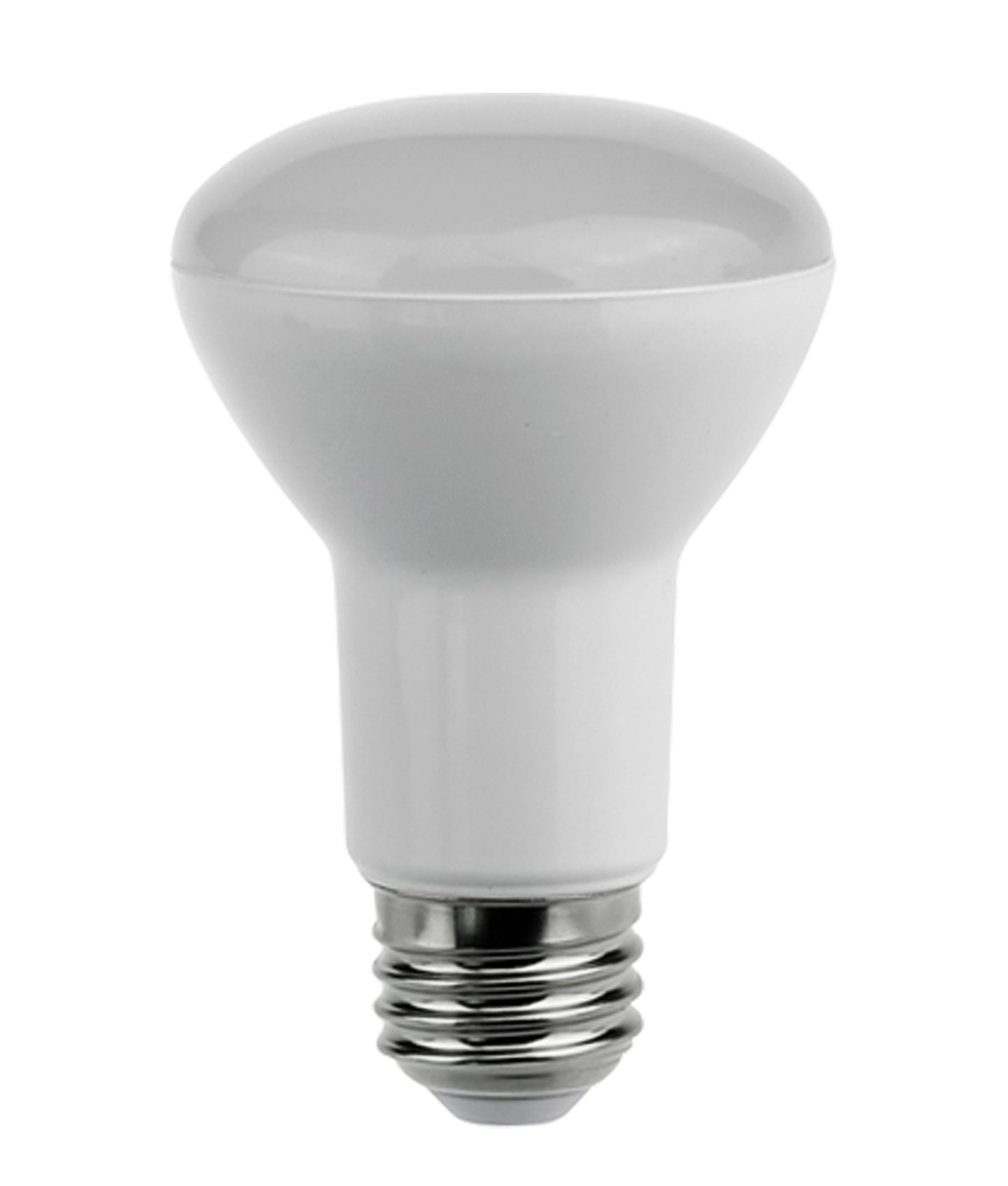

R63 & R80 LED Globes | 10W Power | 5000K Daylight | 810 Lumens | by CLA Lighting
R63 & R80 LED Globes deliver bright 5000K daylight with a powerful 10W output, perfect for residential and general indoor lighting. Designed with a frosted polycarbonate diffuser for soft light distribution and an aluminium heatsink for efficient heat dissipation, these globes ensure long-lasting performance and energy efficiency. Ideal for replacing traditional incandescent bulbs, they are compliant with safety standards and come with a 2-year replacement warranty.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: R63 & R80 LED Globes | 10W Power | 5000K Daylight | 810 Lumens | by CLA Lighting
Brand: CLA Lighting
SKU: R80L2B
Alternatively Known As: LED Reflector Globe, R80 LED Bulb, R63 LED Globe, 10W LED Globe, Daylight LED Globe
Technical Specifications
- Wattage: 10W
- Colour Temperature: 5000K (Daylight)
- Lumens Output: 810 lm
- Beam Angle: 105 degrees
- Input Voltage: 220-240V AC
- Power Factor: 0.5
- CRI: 80
- Material: Frosted polycarbonate diffuser, plastic housing with aluminium heatsink
- LED Chips: SMD2835
- Operating Temperature: -2 to 55°C
- Humidity: ≤90% at 25±2°C
- Not dimmable

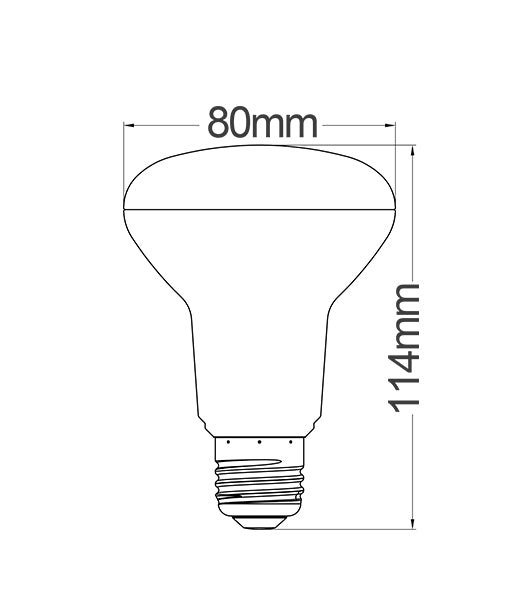

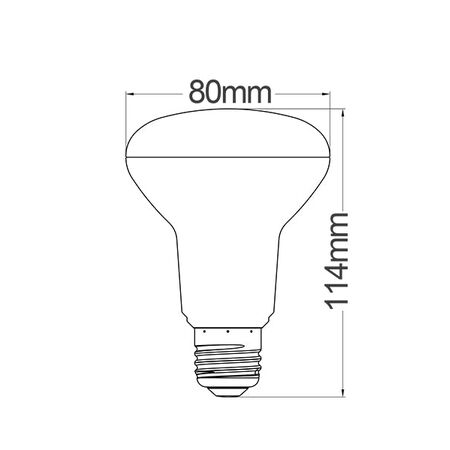

- Dimensions (H x L x W): 114mm x 80mm x 80mm
- Weight: 0.1 kg
Key Features
- Input voltage: 240V AC 50/60Hz
- Aluminium heatsink with thermal conductive plastic for heat dissipation
- Frosted polycarbonate diffuser for soft light distribution
- Uses SMD2835 LED chips
- Power factor of 0.5
- Operating ambient temperature range from -2 to 55°C
- Humidity tolerance up to 90% at 25±2°C
- Not suitable for dimming
- 2 year replacement warranty
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compatibility and safety with existing fixtures.
Applications
- Residential lighting: Suitable for home lighting fixtures
- General indoor lighting requiring LED globe replacements
- Suitable for use in lamps and ceiling fittings compatible with R63 and R80 globes
Standards & Compliance
- Complies with AS/NZS 60598 for safety and performance standards.
Environmental Benefits
- Energy-efficient LED technology reduces electricity consumption compared to traditional incandescent globes.
- Long lifespan reduces waste and frequency of replacements.
- Low heat emission contributes to reduced cooling energy requirements.
Warranty Information
2 year replacement warranty.
Available Now
The CLA Lighting R63 & R80 LED Globes are available for immediate purchase, ideal for residential and general indoor lighting applications.
