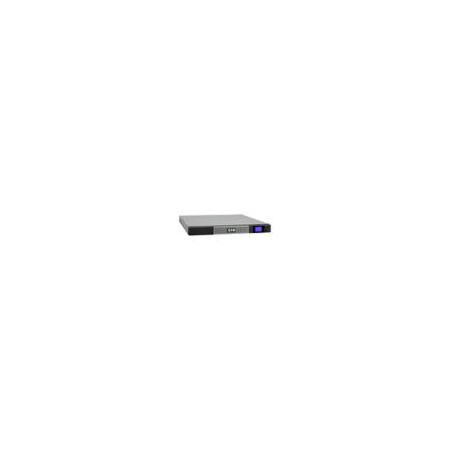

Rackmount UPS 1550VA | 1100W Power Capacity | Line-Interactive & Low Noise | 1U by Eaton
The Eaton 5P 1550VA rackmount UPS offers 1100W power capacity and line-interactive topology—ideal for data centers and critical IT infrastructure. Built for reliable performance, it features user-replaceable batteries and operates at a low noise level under 40 dB.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rackmount UPS 1550VA | 1100W Power Capacity | Line-Interactive & Low Noise | 1U by Eaton
Brand: Eaton
SKU: 9210-6384
Alternatively Known As: Eaton 5P UPS 1550VA, Eaton 5P 1100W Rack UPS, Eaton 5P 1U Rackmount UPS, Eaton 5P Battery Backup
Technical Specifications
- Power Capacity: 1550 VA / 1100 W
- Input Connection: C14
- Output Receptacles: (6) C13
- Input Voltage Range: 160-294 V (adjustable to 150-294 V)
- Output Voltage Range: 230 V (+6%/-10%)
- Output Frequency: 50/60 Hz
- Nominal Voltage: 230 V default (configurable 200/208/220/230/240 V)
- Battery Type: Lead-acid maintenance-free, 3 batteries, 12 V / 9 Ah each
- Battery Management: ABM or constant voltage charging, automatic battery test, deep discharge protection
- Topology: Line-interactive
- Communication Ports: USB (HID), Serial (RS232), Mini-terminal block for remote On/Off and Power Off
- Noise Level: <40 dB at 1 meter
- Operating Temperature Range: 0-90% non-condensing humidity
- Form Factor: 1U Rackmount (19 inch)
- Efficiency at Max Load: 97%
- Auto Shutdown: Yes
- Altitude Rating: Up to 2000 m
- Dimensions (H x L x W): 43.2mm x 554mm x 438mm
- Weight: 19.36 kg
Key Features
- Line-interactive UPS topology for reliable power conditioning
- User replaceable lead-acid maintenance-free batteries
- Automatic battery test and deep discharge protection
- Multiple output receptacles: (6) C13
- Rackmount 1U form factor suitable for 19 inch racks
- Communication interfaces including USB (HID compliant), Serial (RS232), and mini-terminal block
- Optional communication card slot for expanded connectivity
- High efficiency at maximum load (97%)
- Low noise level under 40 dB at 1 meter
- Auto shutdown function for safe power off
Professional Installation Requirements
- Professional installation by qualified IT or electrical personnel is recommended to ensure proper rack mounting, electrical connections, and configuration.
Applications
- Data centers and server rooms
- Network and telecommunications equipment
- Office and commercial IT infrastructure
- Critical systems requiring uninterrupted power supply
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- High efficiency design reduces energy consumption and heat generation
- User-replaceable batteries extend product life and reduce waste
- Automatic battery test optimizes battery usage and longevity
Warranty Information
Warranty details typically include coverage for manufacturing defects and battery performance; please refer to Eaton's official warranty policy for exact terms.
Available Now
The Eaton 5P 1550VA / 1100W 1U Rackmount UPS with LCD is available now for immediate purchase. Ideal for protecting critical IT infrastructure and network equipment in commercial and data center environments.
