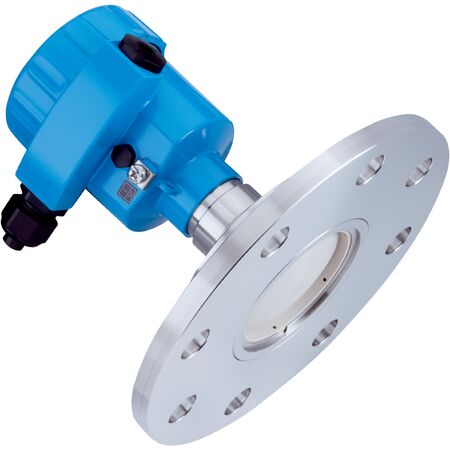

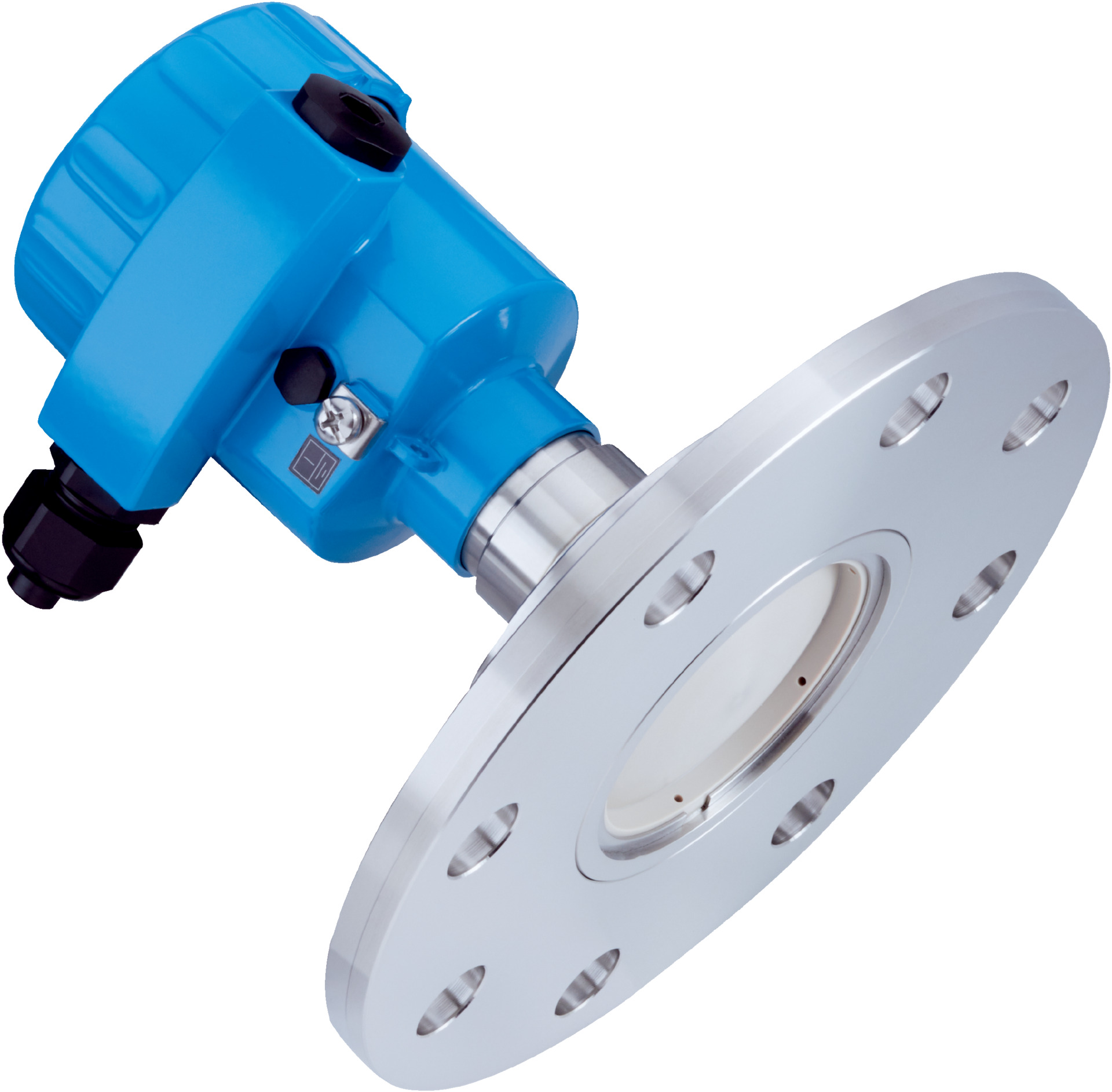

Radar Level Sensor | Continuous Measurement of Bulk Solids | ATEX Certified | IP66/IP68 Protection | by SICK
The Radar Level Sensor is designed for continuous measurement of bulk solids in industrial processes, utilizing W-band frequency for high accuracy. With a robust aluminum housing and ATEX certification, it’s perfect for harsh environments and explosive atmospheres, ensuring reliable performance and safety in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 200mm x 300mm x 150mm
- Weight: 5 kg
Key Features
- Continuous measurement of bulk solids using W-band frequency (75-85 GHz)
- Metal jacketed lens antenna with PEEK material and air purge connection
- Measuring range up to 120 m, recommended up to 20 m with integrated horn antenna
- High accuracy sensor element with ≤ 5 mm accuracy and ≤ 1 mm non-repeatability
- Bluetooth magnet pin operation and installed display for easy control
- HART communication interface with 4-20 mA output signal
- Robust aluminum single-chamber housing with IP66/IP68 protection rating
- ATEX II 1G, 1/2G, 2G Ex ia IIC T6 certified for explosive atmospheres
- Wide operating temperature range from -40 °C to +200 °C for process temperature
Professional Installation Requirements
- Installation by qualified personnel is required, especially due to ATEX certification and process connection requirements.
Applications
- Continuous measurement of bulk solids in industrial processes
- Suitable for use in harsh environments with process pressures from -1 bar to 3 bar
- Ideal for applications requiring ATEX certified equipment in explosive atmospheres
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- Long MTBF (3.37 million hours) reduces waste and replacement frequency
- Energy efficient operation with low start-up current (<3.6 mA)
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed terms.
Available Now
The SICK LBR-ACCSAB2HAKX sensor is available for immediate purchase, ideal for industrial bulk solids measurement applications requiring high accuracy and explosion protection.
