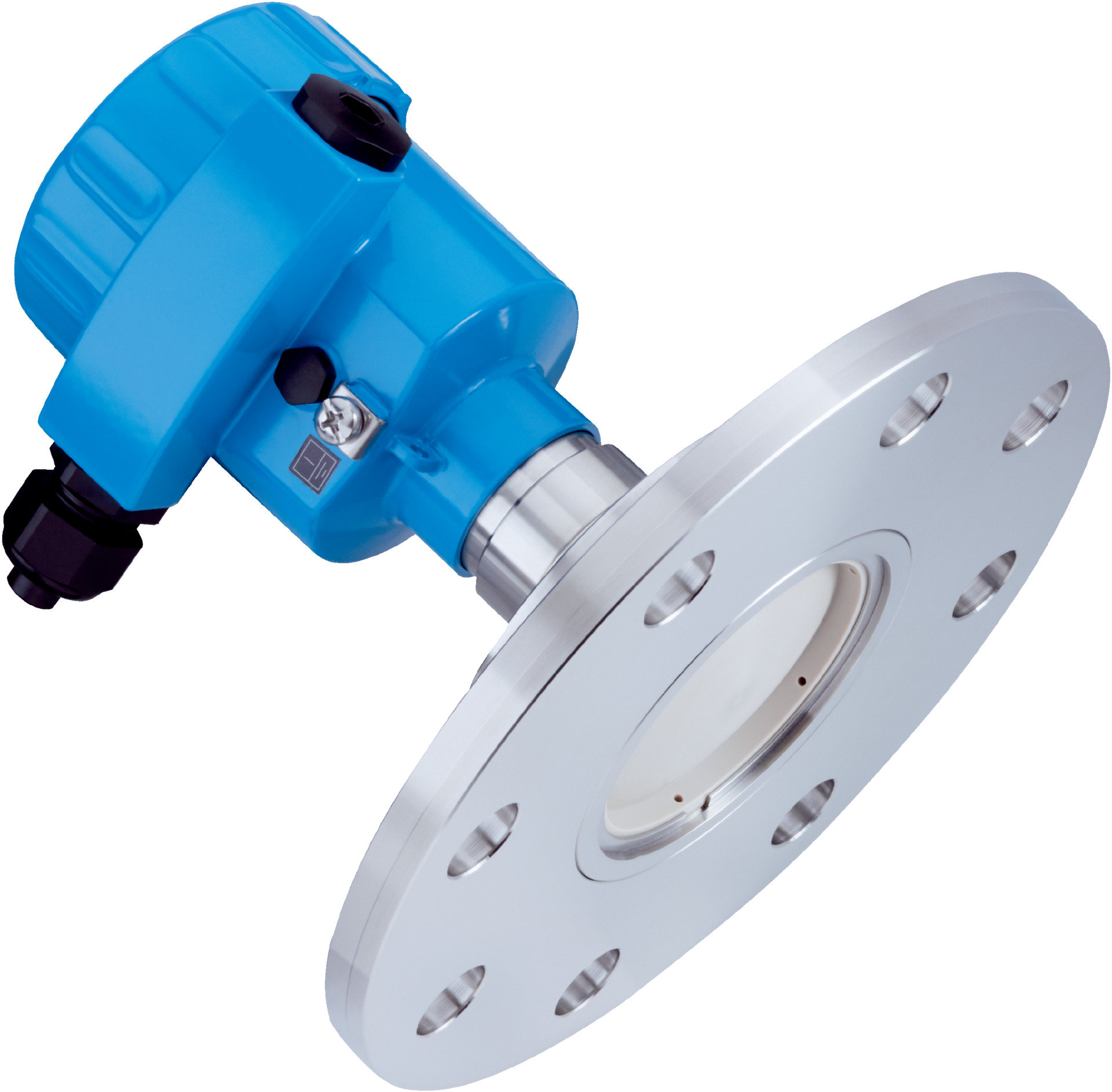

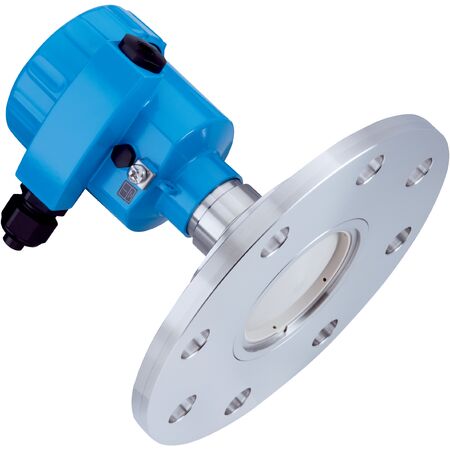

Radar Level Sensor | Continuous Measurement | W-band Frequency | IP66/IP68 Enclosure | by SICK
The Radar Level Sensor is designed for continuous measurement of bulk solids, utilizing W-band frequency (75-85 GHz) for high accuracy up to 120 meters. With a robust aluminum housing and IP66/IP68 rating, it's perfect for harsh industrial environments, ensuring reliable performance and minimal downtime.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement medium: Bulk solids
- Measurement type: Continuous
- Frequency band: W-band (75-85 GHz)
- Measuring range: Up to 120 m (393.7 ft), recommended up to 20 m with integrated horn antenna
- Angle of dispersion: 4°
- Process pressure: -1 bar to 3 bar (-100 kPa to 300 kPa)
- Process temperature: -40 °C to +200 °C
- Accuracy: ≤ 5 mm
- Non-repeatability: ≤ 1 mm
- Digital measurement resolution: < 1 mm
- Analog measurement resolution: 0.3 µA
- Measurement cycle time: Approx. 700 ms
- Step response time: ≤ 3 s
- MTBF: 3.37 million hours
- Communication interface: HART
- Supply voltage: 9 V DC to 30 V DC
- Protection class: I (IEC 61010-1)
- Connection type: M20 x 1.5 / plug connector M12 x 1 pin assignment B
- Output signal: 4 mA to 20 mA / HART
- Enclosure rating: IP66 / IP68
- EMC: EN 61326-1
- Short-circuit protection: Yes
- Isolation: Yes
- Housing material: Aluminum
- Sealing material: FKM
- Antenna material: PEEK
- Dimensions (H x L x W): 300mm x 150mm x 150mm
- Weight: 5 kg
Key Features
- Continuous measurement of bulk solids using W-band frequency (75-85 GHz)
- Metal jacketed lens antenna with PEEK and air purge connection
- Bluetooth magnet pin operation for easy control
- High accuracy sensor element with ≤ 5 mm accuracy and ≤ 1 mm non-repeatability
- Robust aluminum single-chamber housing with IP66/IP68 enclosure rating
- Process connection with swivel holder flange DN100, PN16, form B
- HART communication interface with 4-20 mA output signal
- Wide operating temperature range from -40 °C to +200 °C for process temperature
Professional Installation Requirements
- Installation by qualified professionals is required to ensure proper setup, calibration, and compliance with safety standards.
Applications
- Continuous measurement of bulk solids in industrial processes
- Suitable for use in harsh environments with process pressures from -1 to 3 bar
- Ideal for applications requiring precise level measurement up to 120 meters
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables precise process control reducing material waste
- Bluetooth operation reduces need for physical adjustments minimizing downtime
- Robust design extends product life reducing replacement waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK LBR-XXCSABBHAKX sensor is available for immediate purchase, ideal for industrial bulk solids measurement applications requiring high accuracy and robust performance.
