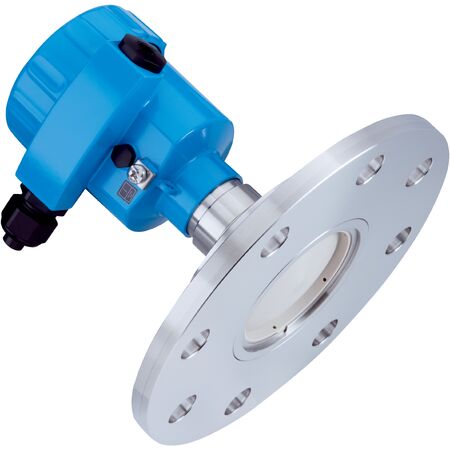

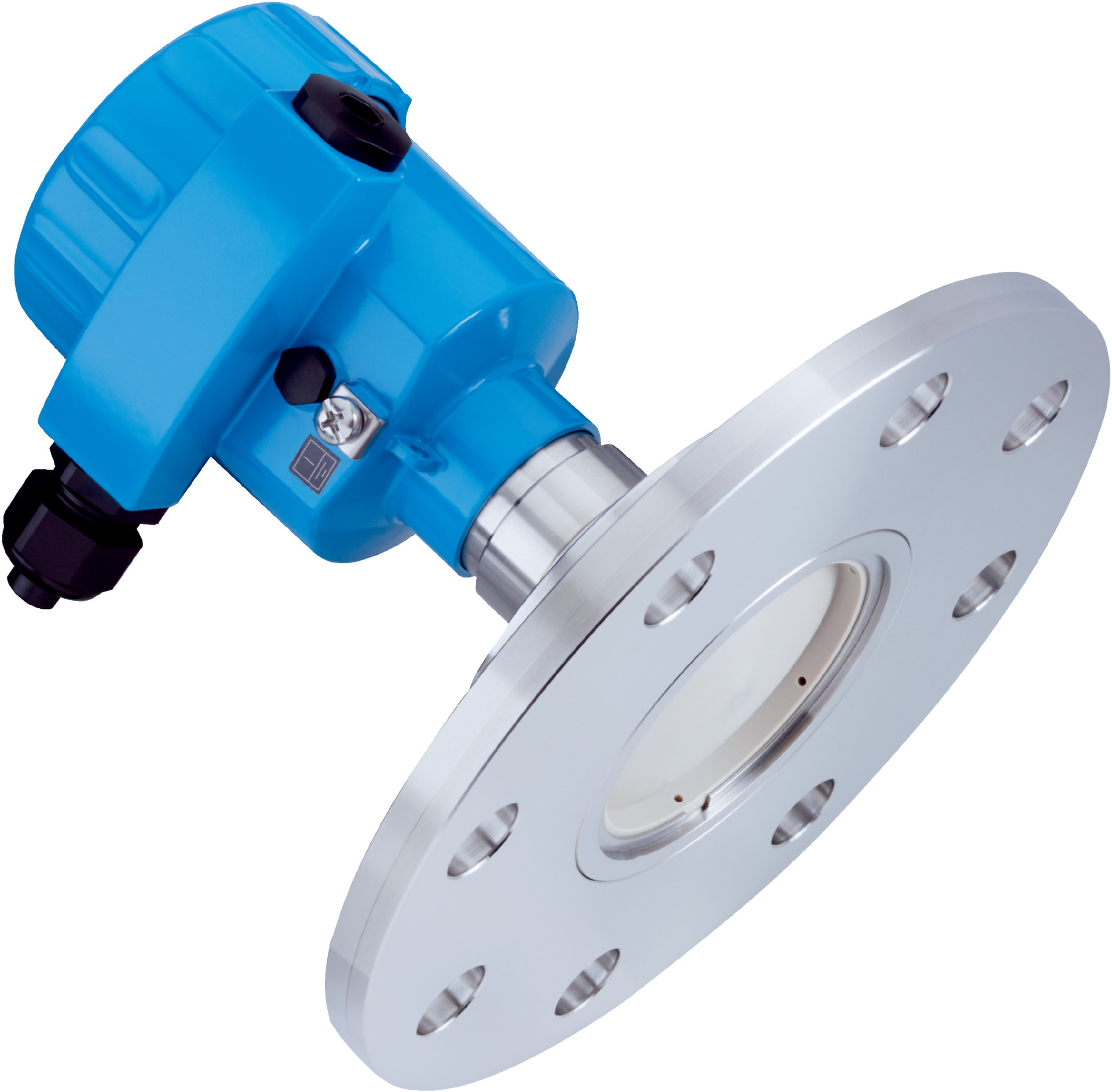

Radar Level Sensor LBR-ARCSAA2HAKX | Continuous Measurement | ATEX Certified | Bluetooth Control | by SICK
The LBR-ARCSAA2HAKX Radar Level Sensor is designed for continuous measurement of bulk solids using advanced W-band radar technology. Ideal for industrial processes, this sensor operates effectively in harsh environments, ensuring high accuracy with ≤ 5 mm precision. Its robust aluminum housing and ATEX certification make it perfect for hazardous areas, while Bluetooth control simplifies configuration and operation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 300mm x 200mm x 150mm
- Weight: 5 kg
Key Features
- Continuous measurement of bulk solids using W-band radar technology
- Metal jacketed lens antenna with PEEK and air purge connection
- Measuring range up to 120 m, recommended up to 20 m with integrated horn antenna
- Bluetooth magnet pin operation for easy control and configuration
- ATEX II 1D, 1/2D, 1/3D, 2D Ex ta, ta/tb, ta/tc, tb IIIC T* Da certified for hazardous areas
- High accuracy sensor element with ≤ 5 mm accuracy and ≤ 1 mm non-repeatability
- Robust aluminum single-chamber housing with FKM sealing material
- Protection class IP66 / IP68 for harsh environmental conditions
- HART communication interface with 4 mA to 20 mA output signal
Professional Installation Requirements
- Installation by qualified personnel with experience in hazardous area equipment and compliance with local electrical and safety standards is required.
Applications
- Bulk solids level measurement in industrial processes
- Suitable for use in harsh environments with dust and pressure variations
- Ideal for continuous monitoring in storage silos, hoppers, and bins
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Enables precise level measurement to optimize material usage and reduce waste
- Bluetooth control reduces need for physical adjustments, minimizing maintenance impact
- Robust design extends product life, reducing replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK LBR-ARCSAA2HAKX radar sensor is available for immediate purchase, ideal for industrial bulk solids level measurement in hazardous and demanding environments.
