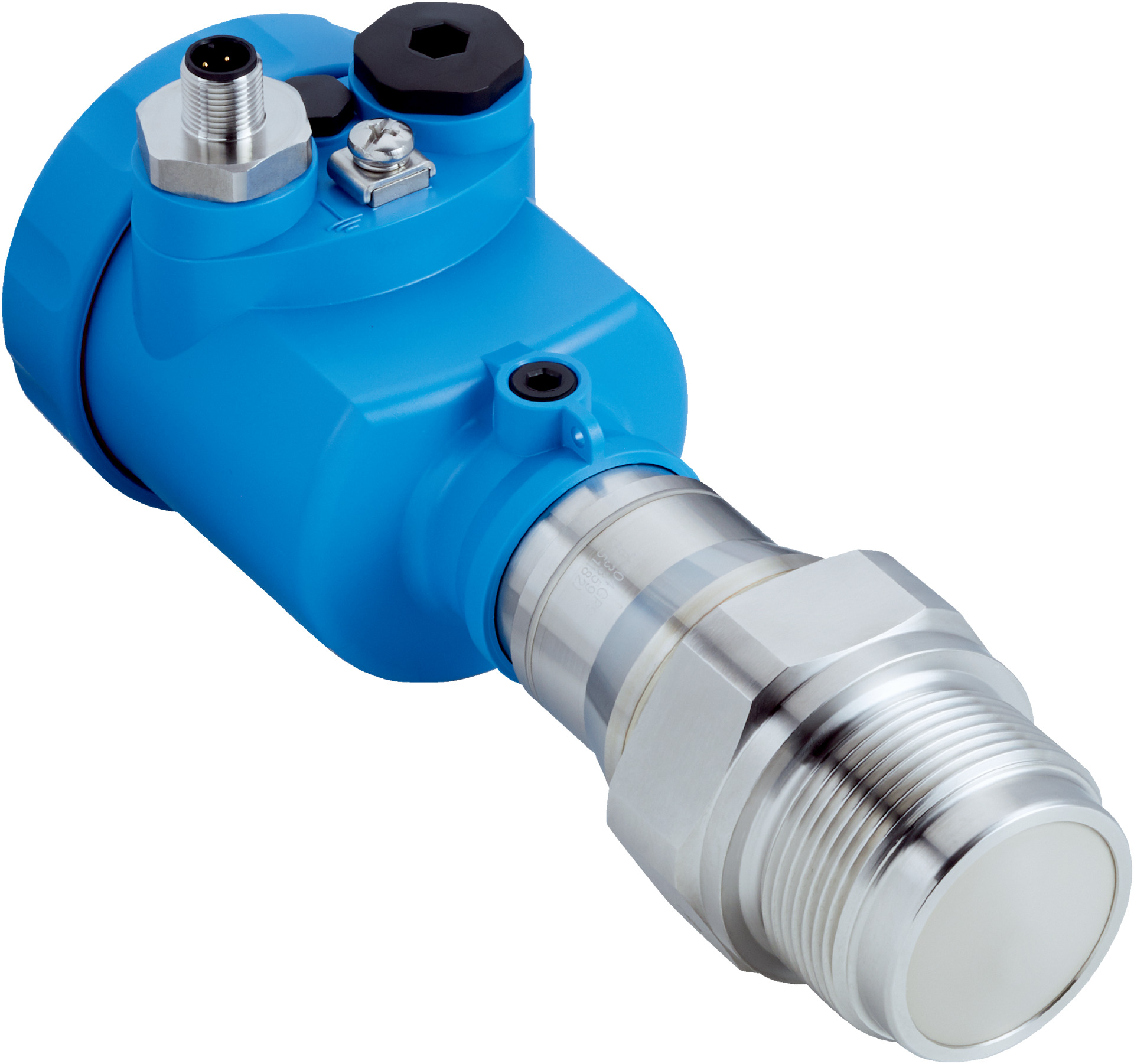

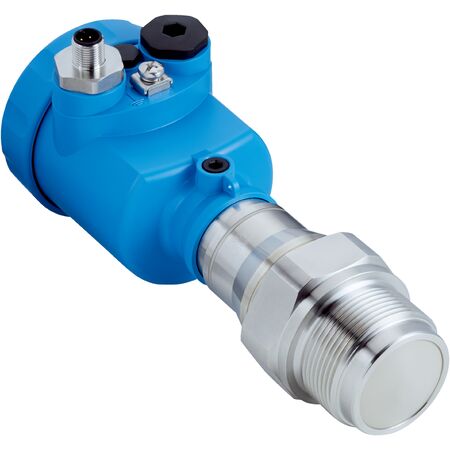

Radar Level Sensor LBR-IJUTDBOHAAX | Continuous Measurement | W-band Frequency | IP66/IP68 Protection | by SICK
The Radar Level Sensor LBR-IJUTDBOHAAX offers continuous measurement of bulk solids with high accuracy (≤ 5 mm), making it ideal for industrial processes. With a robust aluminum housing and IP66/IP68 protection, it withstands harsh environments while providing reliable performance. Perfect for chemical, pharmaceutical, and food industries, this sensor features a W-band frequency for precise level monitoring and is ATEX approved for hazardous areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Bulk solids
- Measurement type: Continuous
- Probe type: Thread with integrated horn antenna made from PEEK
- Frequency band: W-band (75 to 85 GHz)
- Measuring range: Up to 120 m, recommended up to 20 m for thread version
- Angle of dispersion: 7°
- Process pressure: -1 bar to 20 bar (-100 kPa to 2000 kPa)
- Process temperature: -40 °C to +200 °C
- ATEX approval: IECEx db IIC T6...T1, Ga/Gb, Gb, IECEx ta, ta/tb, ta/tc, tb IIIC T* Da, Da/Db, Da/Dc, Db
- Type examination: IECEx KIWA 20.0015X, IECEx KIWA 20.0016X
- RoHS certified
- HART communication interface
- Display: Installed with pushbutton operation
- Accuracy: ≤ 5 mm
- Non-repeatability: ≤ 1 mm
- Digital measurement resolution: < 1 mm
- Analog measurement resolution: 0.3 µA
- Measurement cycle time: Approx. 700 ms
- Step response time: ≤ 3 s
- MTBF: 3.37 million hours
- Supply voltage: 9 V DC to 30 V DC
- Protection class: I (IEC 61010-1)
- Connection type: M20 x 1.5 / cable gland nickel-plated brass (ø 6 mm - 12 mm)
- Output signal: 4 mA to 20 mA / HART
- Contamination rating: 4
- Enclosure rating: IP66 / IP68
- EMC: EN 61326-1
- Start-up current: < 3.6 mA
- Overvoltage category: III (IEC 61010-1)
- Short-circuit protection: Yes
- Isolation: Yes
- Process connection: Thread 1 ½'' NPT PN20, ASME B1.20.1 / 316L stainless steel
- Housing material: Aluminum
- Housing design: Single-chamber housing
- Sealing material: FKM (SHS FPM 70C3 GLT)
- Antenna material: PEEK
- Ambient operating temperature: -40 °C to +80 °C
- Ambient storage temperature: -40 °C to +80 °C
- Dimensions (H x L x W): 200mm x 150mm x 80mm
- Weight: 2.5 kg
Key Features
- Continuous measurement of bulk solids with high accuracy (≤ 5 mm)
- Probe with integrated horn antenna made from durable PEEK material
- Frequency band: W-band (75 to 85 GHz) for reliable radar measurement
- Measuring range up to 120 m, recommended up to 20 m for thread version
- Process pressure tolerance from -1 bar to 20 bar
- Wide process temperature range from -40 °C to +200 °C
- ATEX approved for hazardous areas with IECEx certification
- HART communication interface for easy integration and control
- Robust aluminum single-chamber housing with IP66/IP68 protection
- Threaded process connection 1 ½'' NPT PN20 made of 316L stainless steel
- Display and pushbutton operation for local control and monitoring
Professional Installation Requirements
- Installation by qualified personnel is required, especially for hazardous area compliance and correct process connection sealing.
Applications
- Bulk solids continuous level measurement in industrial processes
- Suitable for use in harsh environments with process pressures up to 20 bar
- Ideal for chemical, pharmaceutical, and food industries requiring precise level monitoring
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Non-contact radar measurement reduces contamination and waste
- Durable materials and long MTBF (3.37 million hours) reduce replacement frequency
- Energy-efficient operation with low start-up current (< 3.6 mA)
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK LBR-IJUTDBOHAAX sensor is available for immediate purchase, ideal for industrial bulk solids level measurement applications requiring high accuracy and hazardous area compliance.
