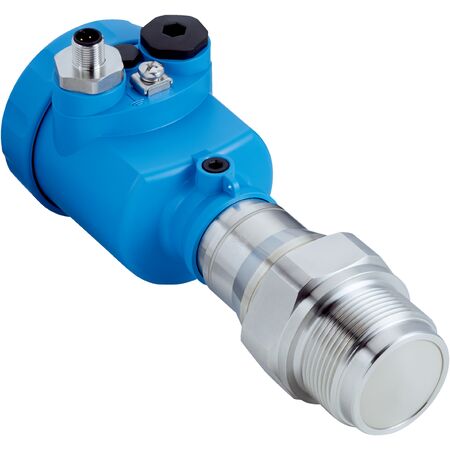

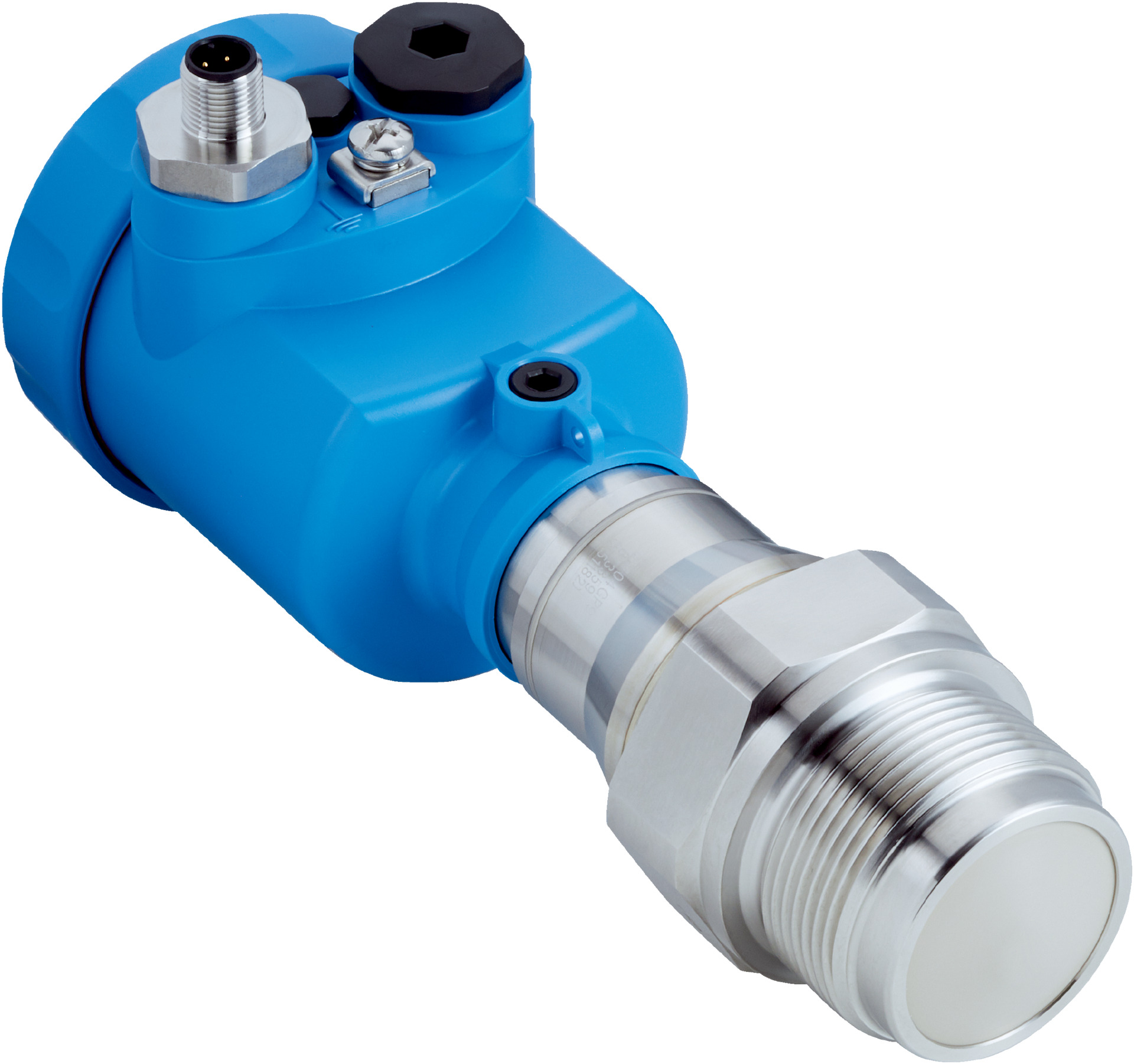

Radar Level Sensor LBR-XXTTCAMHKKX | W-band Technology | IP67 Protection | High Accuracy | by SICK
The Radar Level Sensor LBR-XXTTCAMHKKX utilizes advanced W-band radar technology for continuous measurement of bulk solids, with a measuring range of up to 120 m. Designed for harsh industrial environments, it features an IP67 rating and robust aluminum housing, making it ideal for storage silos and hoppers. With high accuracy and a long MTBF, this sensor ensures reliable performance in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Frequency band: W-band (75-85 GHz)
- Measuring range: Up to 120 m (recommended 20 m for thread version)
- Angle of dispersion: 7°
- Process pressure: -1 bar to 20 bar (-100 kPa to 2000 kPa)
- Process temperature: -40°C to +130°C
- Accuracy: ≤ 5 mm
- Non-repeatability: ≤ 1 mm
- Digital measurement resolution: < 1 mm
- Analog measurement resolution: 0.3 µA
- Measurement cycle time: Approx. 700 ms
- Step response time: ≤ 3 s
- MTBF: 3.37 million hours
- Supply voltage: 9 V DC to 30 V DC
- Output signal: 4 mA to 20 mA / HART
- Protection class: I (IEC 61010-1)
- Enclosure rating: IP67
- Connection type: M20 x 1.5 / cable gland PA black (ø 5 mm - 9 mm)
- Housing material: Aluminum die cast AlSi10Mg, powder-coated
- Sealing material: FKM (SHS FPM 70C3 GLT)
- Antenna material: PEEK
- Dimensions (H x L x W): 150mm x 200mm x 60mm
- Weight: 2.5 kg
Key Features
- Continuous measurement of bulk solids using W-band radar technology (75-85 GHz)
- Probe with integrated horn antenna made from durable PEEK material
- Measuring range up to 120 m, recommended up to 20 m for thread version
- Bluetooth magnet pin operation for easy control and configuration
- HART communication interface for integration and diagnostics
- High accuracy with sensor element accuracy ≤ 5 mm and non-repeatability ≤ 1 mm
- Robust aluminum die-cast housing with powder coating and IP67 protection
- Suitable for process pressures from -1 bar to 20 bar and temperatures from -40°C to +130°C
- RoHS compliant and multiple international certifications including EU, UK, ACMA, FDA, and cCSAus
Professional Installation Requirements
- Installation and commissioning should be performed by qualified personnel familiar with process instrumentation and electrical safety standards.
Applications
- Continuous level measurement of bulk solids in industrial processes
- Suitable for use in storage silos, hoppers, and bins
- Ideal for harsh environments with process pressures up to 20 bar and temperatures from -40°C to +130°C
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- Durable materials and long MTBF reduce waste and replacement frequency
- Energy-efficient operation with low start-up current (<3.6 mA)
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK LBR-XXTTCAMHKKX radar level sensor is available for immediate purchase, ideal for industrial bulk solids level measurement applications.
