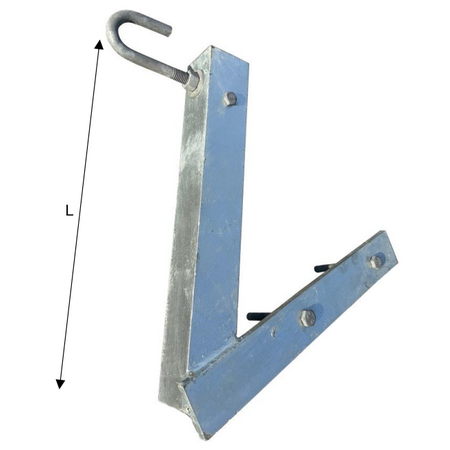

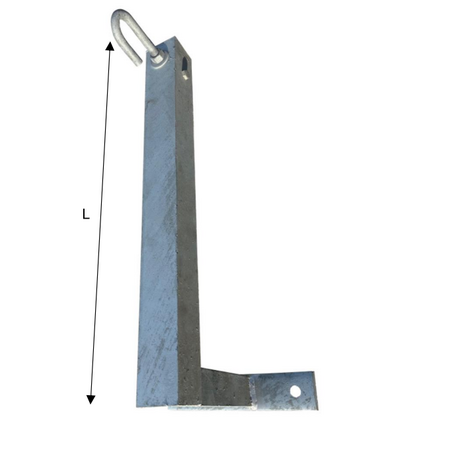

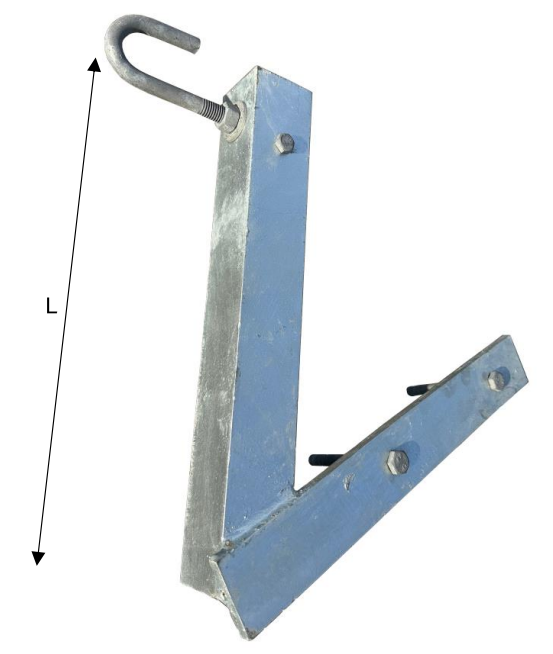

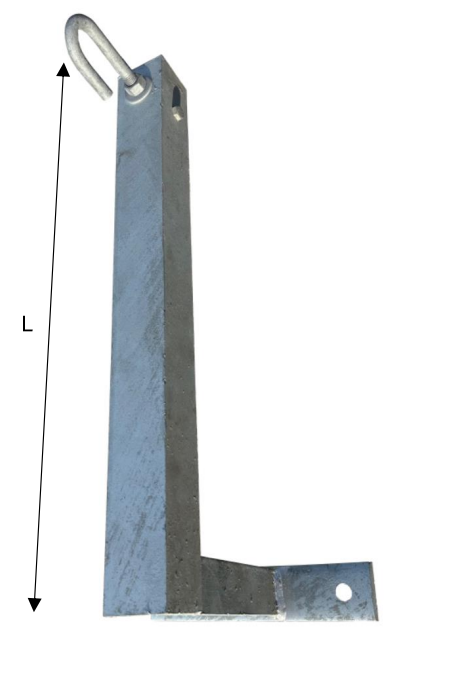

Rafter Bracket 450mm Single Arm | Hot Dip Galvanised Steel | Compliant with NSW Standards | by Supplico
The Rafter Bracket 450mm Single Arm is engineered from hot dip galvanised steel, ensuring exceptional corrosion resistance and durability. Ideal for securing single phase aluminium aerial service lines, this bracket meets NSW service and installation rules, making it perfect for both residential and commercial roofing applications. Designed for professional installation, it guarantees a secure fit and compliance with local building codes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rafter Bracket 450mm Single Arm | Hot Dip Galvanised Steel | Compliant with NSW Standards | by Supplico
Brand: Supplico
SKU: RB3-1
Alternatively Known As: Single Arm Rafter Bracket, 450mm Rafter Bracket, POA Rafter Bracket, Fascia Bracket
Technical Specifications
- Material: Hot dip galvanised steel
- Length: 450 mm
- Weight: 6 kg
- Suitable for single phase aluminium aerial service lines
- Compliant with NSW service and installation rules
- Dimensions (H x L x W): 50mm x 450mm x 50mm
- Weight: 6 kg
Key Features
- Hot dip galvanised for corrosion resistance
- Engineered to meet NSW service and installation rules
- Suitable for approximately 30m of aerial for single phase aluminium service lines
- Designed to be flashed around penetration through roofing material
- Must be bolted through hardwood of adequate strength behind fascia board
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure secure fixing to rafters and compliance with local building codes.
Applications
- Designed for fixing to rafters behind fascia boards in residential and commercial roofing applications
- Suitable for single phase aluminium aerial service lines installation
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Hot dip galvanised coating extends product life, reducing replacement frequency and waste
Warranty Information
Warranty information not specified; please consult Supplico for details.
Available Now
The Supplico Rafter Bracket 450mm Single Arm RB3-1 is available for immediate purchase, ideal for secure aerial service line installations in residential and commercial buildings.
