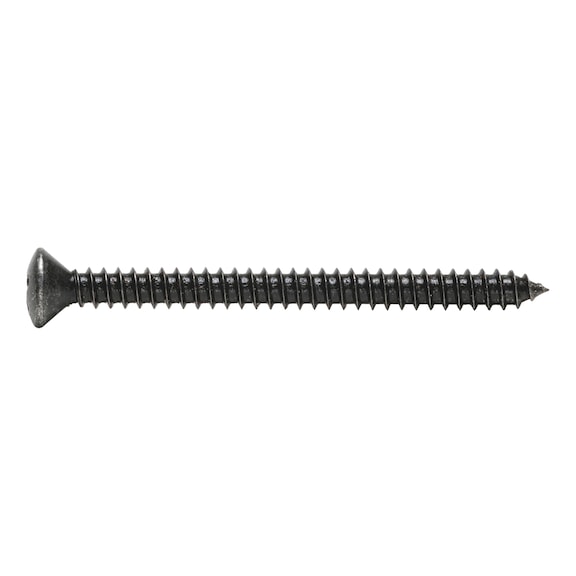

Raised Countersunk Head Tapping Screw | DIN 7983 | Zinc-Plated Black | Self-Tapping Design | @Pack of 25 | by Wurth
Raised countersunk head tapping screws are designed for secure fastening in metal and plastic assemblies. With a DIN 7983 standard, these self-tapping screws feature a zinc-plated black finish for corrosion resistance and a full thread design for strong holding power. Ideal for industrial and construction applications, they ensure reliable performance in various fastening tasks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Raised Countersunk Head Tapping Screw | DIN 7983 | Zinc-Plated Black | Self-Tapping Design | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 1375525
Alternatively Known As: Self-tapping screw, Countersunk tapping screw, DIN 7983 screw, Zinc plated tapping screw, Thread-moulding screw
Technical Specifications
- Standard: DIN 7983
- Material: Steel
- Surface Finish: Zinc plated black
- Form: C (thread with tip)
- Head Type: Raised countersunk head
- Drive Type: H recessed (H3 internal drive)
- Nominal Diameter: 5.5 mm
- Head Diameter: 10.8 mm
- Length: 25 mm
- Head Height: 3.4 mm
- Thread Type: Self-tapping screw thread
- Thread Design: Full thread
- RoHS Compliant: No
- Declaration of Performance (EU-CPR): No
- Dimensions (H x L x W): 3.4mm x 25mm x 10.8mm
- Weight: 0.02 kg
Key Features
- Self-tapping screw that forms its own counter-thread in pre-prepared core holes
- Raised countersunk head with H recessed drive for secure fitting
- Full thread design for strong holding power
- Zinc plated black surface for corrosion resistance
Professional Installation Requirements
- Installation by a qualified tradesperson or technician is recommended to ensure correct pre-drilling and torque application for optimal fastening performance.
Applications
- General fastening applications requiring self-tapping screws
- Metal and plastic assembly where thread-moulding screws are needed
- Industrial and construction use for secure fastening
Standards & Compliance
- AS/NZS 4785 – Mechanical fasteners for general engineering
Environmental Benefits
- Durable zinc plating extends product life reducing replacement frequency
- Steel material is recyclable contributing to sustainable resource use
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth Raised Countersunk Head Tapping Screws are available for immediate purchase, ideal for industrial, construction, and general fastening applications.
