Ratcheting Crimp Tool with Insulated Terminal Die Set | 22-10 AWG | High Carbon Steel | Adjustable Cam Wheel by Ideal Electrical
Ratcheting crimp tool with insulated terminal die set for 22-10 AWG connectors—ideal for professional electricians. Built for reliable crimping, featuring a robust high carbon steel frame and adjustable cam wheel for precision.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

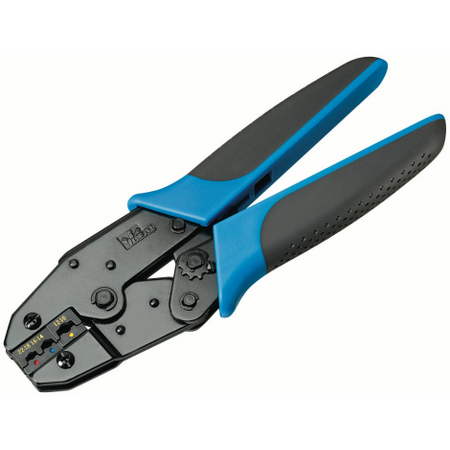

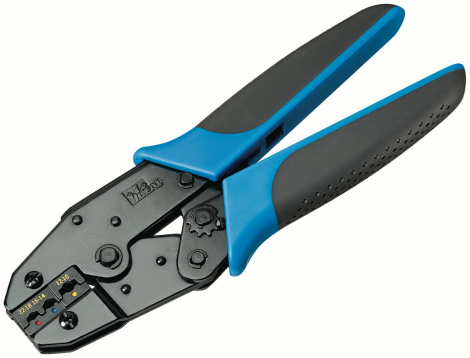

Product Name/Title: Crimpmaster™ Ratcheting Crimp Tool w/Insulated Terminal Die Set
Brand: Ideal Electrical
SKU: IDL30-500
Alternatively Known As: Ratcheting Crimp Tool, Insulated Terminal Crimper, Electrical Crimping Tool, Wire Terminal Crimper
Technical Specifications
- Die set included: 30-579 for insulated terminals 22-10 AWG
- Die cavities: Red 22-18 AWG, Blue 16-14 AWG, Yellow 12-10 AWG
- Material: Fine blanked high carbon steel with black oxide coating
- Ratcheting mechanism with release lever
- Adjustable six position cam wheel
- No factory calibration required
- Dimensions (H x L x W): 250mm x 250mm x 50mm
- Weight: 0.5 kg
Key Features
- Versatile handheld tool suitable for a wide range of connectors
- Includes die set for insulated terminals 22-10 AWG (Red 22-18, Blue 16-14, Yellow 12-10)
- Robust frame made from fine blanked high carbon steel with black oxide coating
- Ratcheting mechanism prevents under-crimping by ensuring full crimp cycle completion
- Ratchet release lever allows mid-cycle tool opening if needed
- Six position cam wheel for adjustment to die set variations
- Precision-ground interchangeable die sets easily swapped with flat or Philips screwdriver
- No factory calibration required, reliable for general purpose crimping
Professional Installation Requirements
- Recommended for use by trained professionals or electricians to ensure proper crimping and safety.
Applications
- Professional electrical wiring and connector crimping
- Crimping RF connectors, wire terminals, and modular plugs
- General purpose crimping for electrical and electronic installations
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces tool replacement frequency, minimizing waste
- Precision crimping reduces electrical faults and energy loss
Warranty Information
Limited 1 year warranty.
Available Now
The Crimpmaster™ Ratcheting Crimp Tool with Insulated Terminal Die Set is available now for immediate purchase. Ideal for professional electricians and technicians requiring reliable and precise crimping tools.
